An electrode holder that becomes unusually hot deserves a closer look before the next weld. Replacing the stinger may solve a worn jaw or damaged handle, but it will not correct every cable or connection problem. Start by identifying what changed: a different current setting, longer arc time, a new cable, a loose connection, or damage to the holder.
This guide focuses on inspection and replacement decisions. It does not provide a live electrical test or a universal temperature limit. Follow the instructions for your holder and welding machine, and have qualified personnel handle repairs.
Stop when heat comes with damage or an equipment defect
Do not keep welding with a smoking handle, damaged insulation, exposed conductor, or a connection that moves inside the holder. OSHA requires equipment defects to be reported and the equipment to remain out of service until its safety is assured; repairs belong to qualified personnel. It also requires replacement of cables with damaged insulation or exposed bare conductors. See OSHA 1910.254(d)(9).
Before inspection, shut down and isolate the equipment according to its manufacturer's instructions and your workplace procedure. Allow hot parts to cool. Do not squeeze, tighten, or open a holder while the welding circuit is energized, and do not use your bare hand as a temperature test.
Record where the heating occurred
Describe the symptom while it is still fresh. Was the heat concentrated near the electrode jaws, where the cable enters the handle, at a connector, or along the lead? Did it appear after a few short welds or only after sustained work? Was the arc unstable at the same time? These observations help the person inspecting the equipment decide what to examine.
Local heating can suggest a connection or contact problem, but location alone does not prove the cause. A worn holder and an unsuitable lead can exist together. Record the machine setting, electrode size, holder model, cable marking, and recent changes rather than ordering a replacement from the symptom alone.
Check the jaws, spring, and insulation

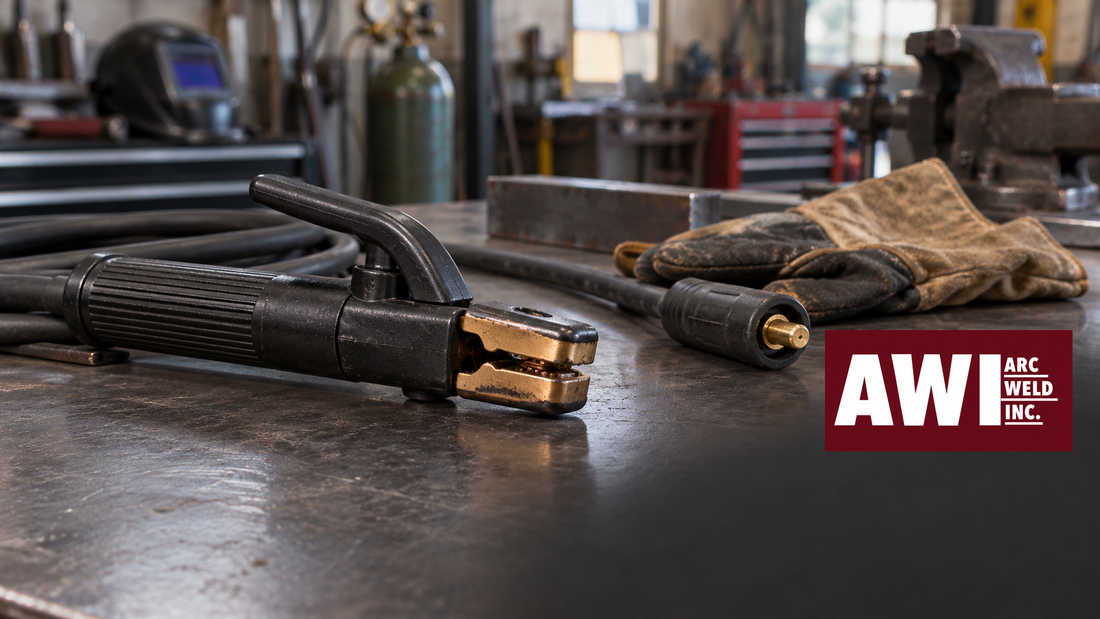

With the equipment safely isolated, inspect the holder against the manufacturer's instructions. Look for visibly damaged contact surfaces, a spring that no longer grips the electrode securely, missing insulating pieces, cracks, and evidence of burning. A holder should hold the intended electrode securely without improvised packing or modifications.
A dirty or damaged contact area can reduce effective contact and create resistance. Do not grind the jaws into a new shape, substitute unrelated hardware, or improvise a repair with tape. Cleaning methods, serviceable parts, and replacement criteria depend on the exact holder. If the manufacturer's permitted service does not restore safe condition, replace the assembly.
Jackson Safety provides manufacturer resources and replacement-part information through its official downloads and support resources. Match any replacement insulator or jaw part to the actual holder model; appearance alone is insufficient.
Inspect the cable connection and the rest of the circuit
The cable-to-holder joint deserves the same attention as the jaws. A loose termination, damaged strands, corrosion, or an incorrectly assembled connection can add resistance. Have qualified personnel check the termination using the specified cable preparation, hardware, and assembly instructions. Do not guess a tightening torque.
Inspect the lead for cuts, crushed areas, and damaged insulation, then include cable connectors and the work connection in the inspection. Replacing the holder while leaving a damaged lead or poor connection in service can leave the original problem unresolved. For related selection considerations, read the ArcWeld welding cable size guide.
Keep the general-industry cable requirements in view: OSHA 1910.254(d)(8) prohibits splices within 10 feet of the holder, and 1910.254(d)(9)(iii) addresses damaged cables and purpose-made connecting means. Use the linked OSHA standard with the requirements applicable to your workplace.
Match the replacement to the actual job
The number in a product name is only one selection input. Confirm the manufacturer's current rating and duty-cycle conditions, accepted cable sizes, electrode capacity, connection arrangement, and replacement-part support. A higher-current holder is not automatically compatible with an existing cable, and it does not increase the capacity of the welding machine or lead.
ArcWeld currently lists the Jackson J4 electrode holder and the Jackson 3001795 electrode holder. Compare the exact manufacturer's specifications before ordering. These links identify available products; they do not establish that either holder fits your existing lead or operating conditions.
For a broader buying checklist, see Choosing an Electrode Holder: Current Rating, Cable Fit, and Inspection. Bring the cable size, holder model, intended current, and electrode size to the selection discussion.
Return to service only after the cause is addressed
Document the defect and the corrective action. A replacement decision should identify whether the holder, cable termination, lead, or another connection was responsible, and whether more than one component needed attention. Follow the manufacturer's and workplace's return-to-service procedure after qualified repairs.
When the holder is not in use, place it where it cannot make electrical contact with people, conducting objects, fuel tanks, or compressed-gas tanks, as required by OSHA 1910.254(d)(7). If unusual heating returns, stop and have the equipment reassessed instead of continuing to replace stingers without identifying the cause.
