How to Choose the Right Electrode Holder for Better Welding Performance and Safety

In Shielded Metal Arc Welding (SMAW), often called stick welding, your equipment determines your final output. While operators spend hours tuning their power sources and choosing specific electrodes, they frequently overlook the single most important physical touchpoint of the process: the electrode holder, or "stinger."

An inferior or poorly matched stinger does more than just cause hand fatigue. It leads to poor electrical conductivity, regular voltage drops, micro-arcs that destroy equipment, and acute safety hazards like electrical shock or severe burns.

Choosing the right welding electrode holder directly improves your bead quality, deposition efficiency, and physical safety on the job. Let us break down how to choose the perfect stinger for your operations, with an in-depth look at professional configurations like the industry-standard M300 electrode holder.

1. Amperage Rating: Matching Power to Duty Cycle

The primary consideration when purchasing a new stinger is matching its electrical capacity to your machine's peak output and duty cycle. Electrode holders are categorized by their maximum amperage threshold, generally ranging from 200 Amps to 500 Amps.

Using an undersized holder causes it to heat up rapidly, melting the internal springs and degrading the insulation material. Conversely, an oversized holder adds unnecessary weight and bulk, restricting your torch manipulation in tight joints.

• Light Duty (200A): Best for sheet metal work, light maintenance, and thin gauge materials using small diameter rods.
• Medium Duty (300A - 350A): The standard industrial sweet spot. Perfect for structural steel fabrication, pipe welding, and heavy repair work.
• Heavy Duty (400A - 500A): Reserved for high-amperage industrial applications, heavy structural fabrication, and continuous production environments.

If you are routinely welding at 250 Amps, a 300A-rated unit provides the necessary thermal headroom to prevent overheating.

2. Materials Matter: Conductivity vs. Durability

An electrode holder is an electrical conductor wrapped in an insulator. The materials used directly impact how efficiently power moves from your welding cable into your rod.

The Jaws (Tongs)

The upper and lower jaws must feature excellent electrical conductivity alongside structural strength. Premium options use high copper alloys. Copper offers low electrical resistance, meaning less energy is wasted as ambient heat. Look for deep-grooved jaw profiles; these hold the electrode securely at multiple angles (typically 45°, 90°, and 180°), preventing slipping or shifting mid-bead.

The Handle and Insulators

The handle and tip insulators protect you from radiant heat and stray electrical currents. Industrial-grade stingers utilize molded fiberglass compounds for the upper and lower tips because fiberglass withstands intense heat impact without cracking. For the outer handle, glass-filled nylon provides incredible impact resistance if dropped on concrete, while keeping the tool electrically dead to the operator's hand.

3. Cable Connection and Cable Capacity

Your stinger must cleanly accept your lead wire. The standard standard for professional stingers is a single oval-point screw cable connection. This connection style clamps down hard onto bare copper strands, minimizing contact resistance and stopping heat buildup right at the base of the handle.

Ensure the holder matches your cable size. A medium-duty option like the Weldmark electrode holder natively accepts up to a 2/0 welding cable and handles up to a 1/4" maximum electrode size. Forcing oversized cables into light-duty holders leads to exposed strands and electrical faults, while using tiny wires in large connectors causes weak mechanical clamping.

The Industrial Benchmark: The M300 Configuration

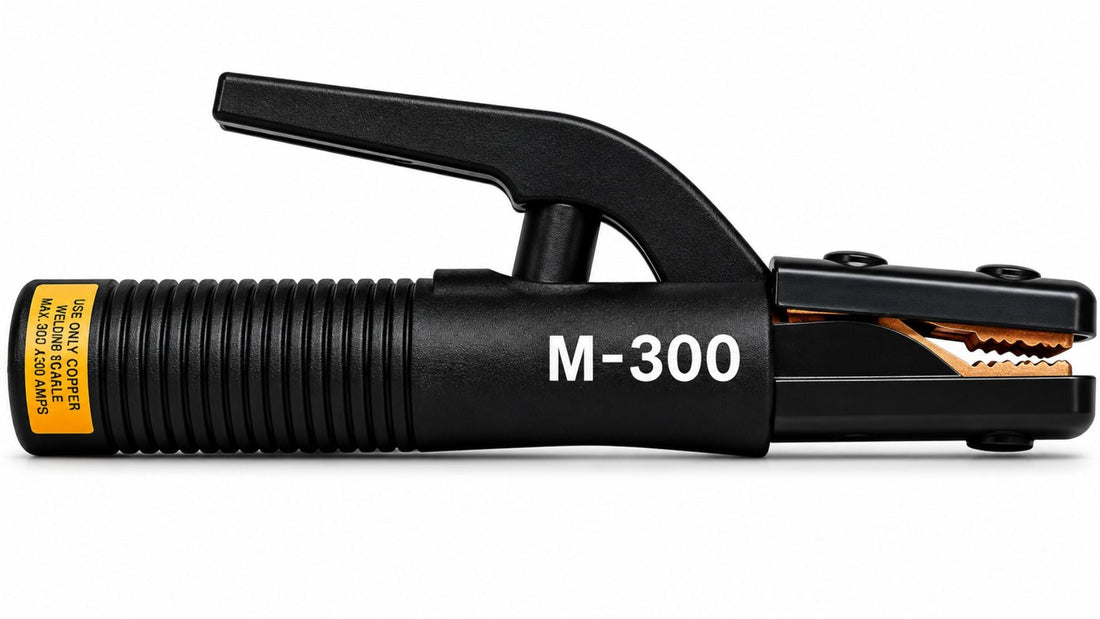

When evaluating industrial environments across the United States, precision and reliability point toward the M300 electrode holder pattern. Manufactured with historical craftsmanship by Lenco for Weldmark, this specific configuration represents the gold standard for mid-to-heavy structural fabricators.

+------------------+----------------------------------------------------+
| Feature          | Technical Specification (M300 Configuration)      |
+------------------+----------------------------------------------------+
| Amperage Capacity| 300 Amps Continuous (Rated up to 350 Amps Max)     |
| Duty Rating      | Medium Duty                                        |
| Material Base    | High-Conductivity Copper Alloy Tongs               |
| Handle Compound  | Heavy-Duty Glass-Filled Nylon                      |
| Tip Insulation   | High-Impact Molded Fiberglass                      |
| Cable Size Cap.  | Up to 2/0 AWG                                      |
| Electrode Cap.   | Up to 1/4" (0.250 in)                              |
| Total Length     | 10.00 Inches                                       |
| Connection Type  | Secure Single Oval-Point                           |
+------------------+----------------------------------------------------+

The M300 layout utilizes a distinct low-profile lever system. This reduces the holder's cross-sectional clearance, allowing you to slip your stinger into tight V-grooves and structural intersections without accidentally striking an arc against your work piece on the side.

If you need a reliable replacement built for continuous arc time, you can secure an authentic, American-made Weldmark Lenco 300 Amp Electrode Holder directly from our inventory for industrial-grade longevity.

4. Crucial Safety and Operational Inspections

Even the highest quality stinger will fail if poorly maintained. To protect your team and maintain high inspection standards, implement these protocols:

1. Check for Exposed Screws: The oval-point connection screw inside the handle must remain fully recessed. If it backs out, it can contact your welding glove and pass current straight to your hand.
2. Monitor Insulation Cracks: Never wrap a cracked tip insulator in electrical tape as a permanent fix. High-temperature arc radiation melts adhesive tape instantly. Replace the fiberglass tips immediately.
3. Clean the Jaws: Spatter buildup inside the jaw grooves ruins your electrical contact. Use a wire brush to clear away slag and metallic dust weekly to preserve stable arc voltages.

Frequently Asked Questions (FAQs)

Q1. What happens if I use an electrode holder with an amperage rating that is too low?

Using an undersized stinger increases internal electrical resistance, generating extreme heat. Over time, this heat anneals the internal tension spring, causing the jaws to lose their grip on the welding rod. It can also melt the glass-filled nylon handle, posing a severe burn hazard.

Q2. Why is copper alloy preferred over brass for stinger jaws?

Pure copper and high-copper alloys possess significantly higher electrical and thermal conductivity than brass. Higher conductivity minimizes voltage drops across the connection and prevents the tool from running hot during continuous welding cycles.

43. How often should I replace the tip insulators on my M300 electrode holder?

Tip insulators should be inspected daily. Replace them immediately if you notice deep cracks, exposed metal on the tongs, or missing chips of fiberglass. Intact insulation is your primary line of defense against accidental short-circuiting.

5. Can I run a smaller 1/8" rod in a 300 Amp holder?

Yes. A 300 Amp holder like the M300 can firmly secure any electrode size up to 1/4". The spring-loaded grooved jaws clamp tightly down onto smaller diameters like 1/8" or 3/32" without any loss of stability.

Conclusion

Your choice of electrode holder dictates your daily arc stability and comfort. By matching your amperage needs, selecting heavy-duty insulated copper tongs, and utilizing proven configurations like the M300, you keep your operations running safely and efficiently. Upgrade your shop setup with professional-grade gear by exploring the full Arc Weld Store Collections to select the perfect stinger for your welding demands.
