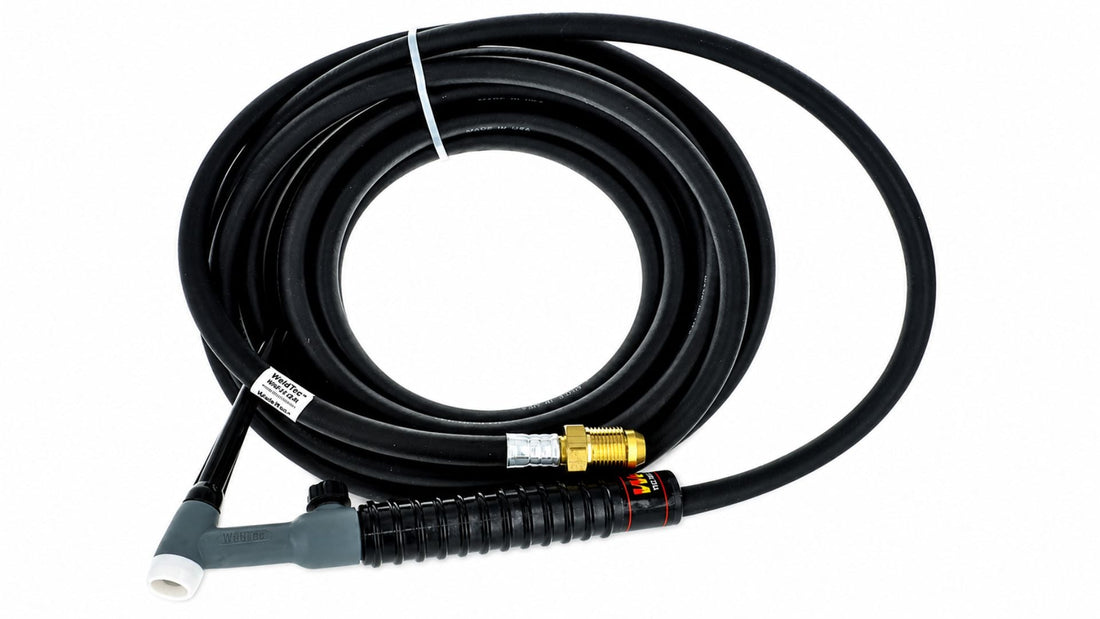

How to Choose the Right TIG Torch for Your Welding Projects

When it comes to precision welding, nothing matches the control and clean aesthetics of Gas Tungsten Arc Welding (GTAW), commonly known as TIG. However, a master welder is only as good as their equipment. The tig torch you hold in your hand acts as the direct bridge between your skill and the weld puddle. Choosing an incorrect or poorly matched tig welding torch doesn't just cause hand fatigue—it can lead to erratic arcs, overheating, and structural weld failures.

Whether you are configuring a heavy-duty industrial workstation or seeking a comprehensive TIG Torch Kit for a precision home garage setup, this guide breaks down the technical specifications you must evaluate to choose the right tool for your project demands.

1. Amperage Requirements and Duty Cycle

The very first metric to analyze is the maximum amperage your welding machine outputs and the types of materials you intend to join. Matching your torch's amperage rating to your project workload is critical for safety and equipment longevity.

  • Light-Duty (Under 150 Amps): Ideal for thin sheet metal, automotive body panels, and intricate artistic applications. A standard 9-series or 17-series torch handles these ranges comfortably.
  • Medium to Heavy-Duty (150–350+ Amps): Required for structural steel, thick aluminum plates, and industrial pipe welding. These workloads demand robust 18-series or 26-series configurations to prevent structural failure of the torch head.

Equally important is the duty cycle—the percentage of a 10-minute period a torch can operate at its maximum rated amperage without overheating. Pushing a low-amperage torch past its duty cycle limits will melt the internal silicone rubber insulation and destroy the handle.

2. Air-Cooled vs. Water-Cooled TIG Torches

TIG torches must dissipate the intense heat generated by the electric arc. They do this using one of two cooling methods: air (gas) cooling or water cooling.

Air-Cooled (Gas-Cooled) Torches

Air-cooled torches rely on the surrounding ambient air and the flow of your incoming shielding gas (typically Argon) to keep the internal components cool.

  • Pros: Highly portable, fewer hoses to manage, less expensive, and zero risk of coolant leaks.
  • Cons: Bulkier torch bodies, heavier cables, and a lower overall duty cycle. They generally max out effectively around 150 to 200 amps.
  • Best For: Field repair technicians, mobile welding rigs, and hobbyists working on shorter, low-amperage projects.

Water-Cooled Torches

Water-cooled setups utilize a dedicated cooling unit that continuously circulates clean water or specialized radiator coolant through internal passages inside the power cable and torch head.

  • Pros: Significantly smaller, lighter, and more agile torch heads. They can run at a 100% duty cycle all day long at high amperages (up to 350-500 amps) without becoming hot to the touch.
  • Cons: Require a dedicated water cooler asset, more expensive upfront investment, and feature three heavy hoses (gas, water-in, and water-out/power) that limit long-distance mobility.
  • Best For: Production fabrication shops, automated welding cells, and anyone regularly welding thick aluminum which requires prolonged high-amperage AC output.

If you are looking to upgrade your setup or replace an existing system, you can explore our complete inventory of professional-grade air and water-cooled systems on our dedicated TIG Torch Collections Page.

3. Understanding Torch Body Sizes (9, 17, 18, and 26 Series)

The industry classifies standard TIG torches using a specific numbering system established by original manufacturers. Knowing these numbers helps you source the correct consumable parts like collets, collet bodies, and gas cups.

Torch Series Cooling Type Max Rated Amperage Common Use Case
WP-9 Air-Cooled 125 Amps Ultra-precision sheet metal, thin stainless steel tubing
WP-17 Air-Cooled 150 Amps General-purpose fabrication, automotive, light fabrication
WP-26 Air-Cooled 200 Amps Heavy-duty manual field welding, thick steel plates
WP-18 Water-Cooled 350+ Amps Industrial production, high-amp aluminum fabrication

4. Torch Head Configurations: Rigid vs. Flex Heads

The physical layout of your workspace should dictate the torch head geometry you select.

  • Rigid Torch Heads: These feature a fixed, solid neck angle (usually 60 or 90 degrees). They are incredibly durable and built to withstand physical abuse in rugged environments, but they require the operator to manipulate their wrists extensively to maintain the correct torch-to-workpiece angle.
  • Flex-Head (FX) Torches: Constructed with a malleable internal copper neck wrapped in high-temp silicone, a flexible head allows you to bend the torch angle dynamically. This is a lifesaver when welding roll cages, inside structural pipe joints, or tight aerospace bulkheads where space is limited.

5. Amperage Controls: Toggle, Rotary or Foot Pedals

Controlling your heat profile while welding is paramount, especially on heat-sensitive metals like aluminum or titanium. You have a few options for adjusting current:

  1. Foot Pedal: The gold standard for bench fabrication. Press down to increase heat, lift off to decrease. It keeps your torch hand completely still and stable.
  2. Hand Slider/Rotary Control: Integrated directly onto the torch handle. Perfect for out-of-position field welding, pipe welding, or working on ladders where a foot pedal is impossible to use.
  3. Momentary Switch (Torch Trigger): A simple on/off button used primarily in European-style shops or with advanced 2T/4T inverter programs where your machine automatically handles the slope-up and slope-down cycles.

If you are building an entirely new setup, purchasing a comprehensive TIG Torch Kit ensures that your torch, power adapters, gas hoses, and handle controls are fully pinned out and ready to plug directly into your specific machine model.

6. Sourcing From a Trusted Welding Partner

Selecting the right equipment shouldn't involve guesswork. At ArcWeld Store, we specialize in high-performance welding apparatus designed to withstand rigorous commercial and industrial use cases across the United States. To browse our complete technical catalog of power sources, consumables, and gear, head over to the ArcWeld Store Home Page.

Frequently Asked Questions (FAQs)

Q1. What is the difference between a WP-17 and a WP-26 TIG torch?

The primary difference is physical size and power handling capacity. A WP-17 is a medium-duty, air-cooled torch rated up to 150 amps, making it smaller and easier to manipulate. A WP-26 is a heavy-duty, air-cooled torch rated up to 200 amps. The WP-26 handles thicker materials but is heavier, bulkier, and stiffer to work with over long periods.

Q2. Can I connect a water-cooled TIG welding torch to a machine without a cooler?

No. Operating a water-cooled torch without active liquid coolant circulation will permanently burn and destroy the internal power cables within seconds, even at incredibly low amperages. The power cable inside a water-cooled torch is highly integrated and relies explicitly on liquid cooling to keep its thin internal copper strands from melting under electrical load.

Q3. What consumables are typically included in a premium TIG Torch Kit?

A standard premium kit includes the torch body and handle, a set of varying-sized collets and collet bodies (or gas lenses) ranging from 1/16" to 1/8", a selection of Alumina ceramic gas cups, long and short back caps for tight clearances, and basic tungsten electrodes to get you started.

Q4. Why should I choose a gas lens instead of a standard collet body?

A gas lens replaces the traditional collet body and uses layered stainless steel mesh screens to modify incoming turbulent gas into a highly smooth, laminar column of shielding gas. This provides significantly superior gas coverage, allows you to extend your tungsten further out of the cup for better weld puddle visibility, and reduces atmospheric contamination.

Conclusion

Choosing the ideal tig welding torch requires balancing your machine’s power capabilities with the physical constraints of your welding workspace. By carefully weighing air-cooled portability against water-cooled continuous performance, and pairing it with a functional flexible neck or hand control, you ensure your equipment works with you rather than against you. Take the time to assess your typical material thicknesses, check your duty cycles, and outfit your station with tools designed for precision.
