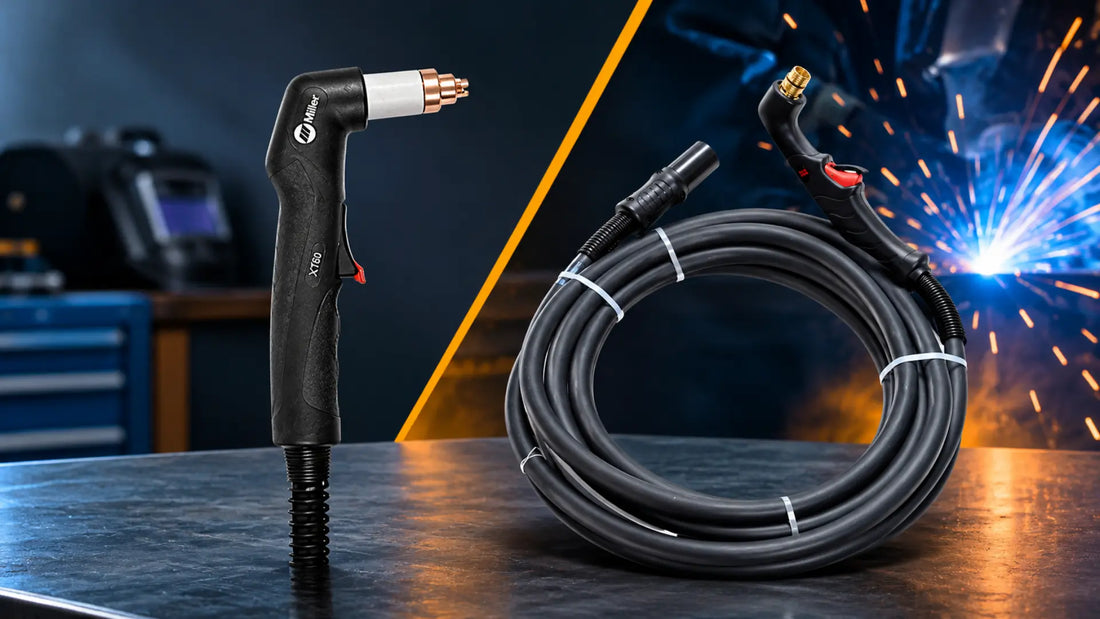

Updated September 24, 2026. Start a plasma-torch replacement with the power source's exact model and the torch already fitted to it. Matching the advertised amperage or finding a connector that looks similar is not enough. Treat the power source, lead, torch, controls, and consumables as a system.
Identify the machine and existing torch
Record the power-source manufacturer, complete model, serial number, and current torch markings. Note whether the torch is the original type or a previous retrofit. Photograph the connection without dismantling energized equipment. Identify the required lead length and whether the work is handheld or mechanized.
Then locate the manufacturer's approved replacement or retrofit for that specific system. Confirm the complete assembly part number, not merely a torch-family name. A torch body, repair kit, lead assembly, and complete torch package are different purchases.
Use a documented retrofit—not an improvised adapter
Hypertherm illustrates why model matching matters. Its Duramax retrofit range for Powermax1000, 1250, and 1650 is identified for those systems and uses their ETR connection. A separate retrofit range covers Powermax600, 800, 900, and MAX42/43, with connections selected for those systems.
Those examples do not mean all Duramax torches interchange. Use the documented part number and installation instructions for the machine in front of you. Do not re-pin plugs, bypass interlocks, or splice a supposedly universal torch into a cutter to make it operate.
Check the whole application
Confirm that the proposed assembly supports the machine, intended output, starting arrangement, gas requirements, cooling arrangement, and control interface. For mechanized use, verify mounting, lead routing, and the approved machine-control connections. A handheld torch and a machine torch are not interchangeable merely because both fit within a current range.
Do not infer cutting capacity from the replacement torch's amp rating. Use the power source's published cut charts and distinguish the manufacturer's production-cut, pierce, and severance capabilities where listed. Replacing a torch does not increase the cutter's rated output.
Match consumables to the installed torch

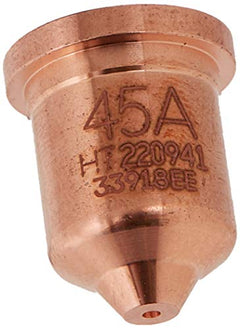

After selecting the torch, use its consumable chart for the intended current and operation. Check the complete stack or cartridge: nozzle, electrode, shield, retaining cap, swirl ring, and other components where applicable. A part advertised for the same machine may belong to its original torch rather than a retrofit fitted later.
Keep cutting and gouging combinations separate. Confirm which parts are supplied with the replacement and which need to be purchased. Save the updated torch and consumable references with the machine so the next reorder does not revert to the old torch's parts.
Inspect before replacing the entire assembly
Follow the operator manual to isolate power and allow equipment to cool before inspecting serviceable parts. Record fault codes and examine the permitted inspection points for damaged leads, connections, consumables, and gas-supply problems. Internal service or electrical faults require appropriately qualified service personnel.
Use the exact torch's wear limits. Do not apply one electrode-pit depth, nozzle-cleaning method, or replacement interval to every plasma system. Replace damaged components according to the manufacturer's instructions rather than reshaping a nozzle opening or defeating a fault indication.
Order with a complete fitment record
Send the machine model and serial information, installed torch model, desired lead length, handheld or mechanized application, and the manufacturer-approved replacement number. Ask what the quoted package includes.
Browse ArcWeld's plasma torch accessories only after identifying the required assembly or component. The collection includes accessories; a listing in that category is not proof that it is a complete torch or compatible with your machine. Confirm any unknown connection, part number, or operating limit before ordering.
