A replacement MIG gas diffuser should solve a worn-part problem without creating a fitment problem. Before ordering, identify the gun and its installed consumable system—not just the wire diameter or the brand on the welder. A diffuser, contact tip, nozzle, and liner can look familiar while belonging to different front-end assemblies.

This guide focuses on deciding when a diffuser needs attention and gathering the information needed to buy the correct replacement. It is not a universal installation procedure or permission to mix consumable systems.

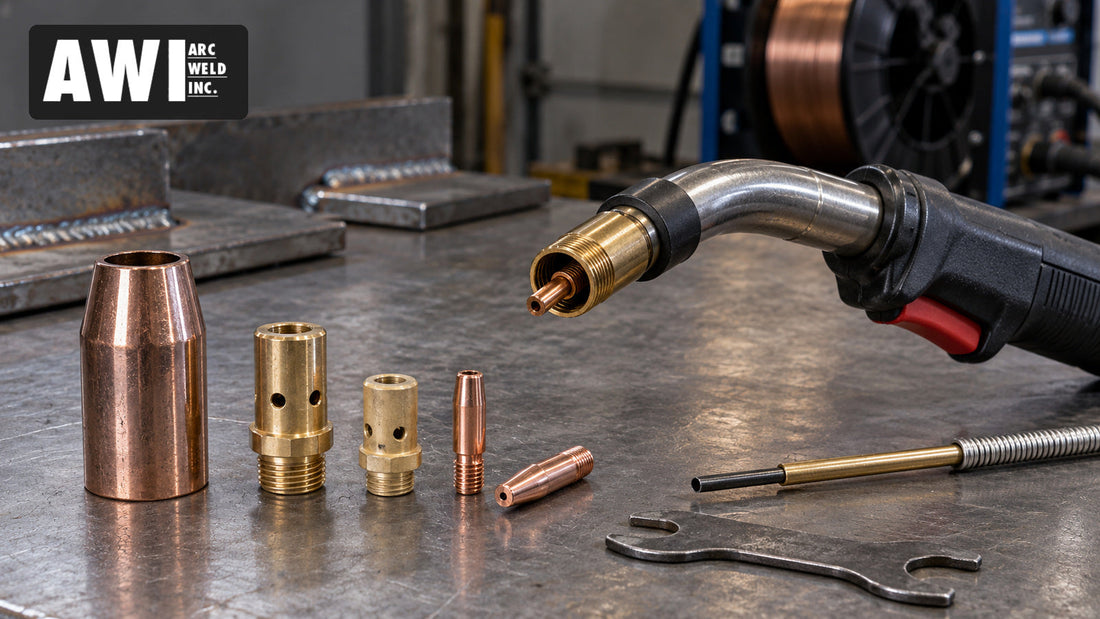

What to identify behind the nozzle

The diffuser is part of the gun's front-end gas and electrical connection system. Its interfaces matter as much as its outside shape. For example, Miller describes tapered connections between the contact tip, diffuser, and neck on its D-M250 Standard Duty assembly, along with a system that locates the liner. That is a reason to check the whole assembly rather than treating the diffuser as a generic brass fitting.

Separate the identification questions: which diffuser fits the installed neck, which tip and nozzle belong with it, and what liner arrangement the gun requires. Wire diameter remains important for selecting a contact tip, but it does not identify every other front-end part. Our MIG contact-tip selection guide covers that separate ordering step.

Make the gun safe before inspection

Follow the equipment's shutdown and service instructions before removing consumables. Bernard's diffuser and liner service guidance calls for disconnecting the gun, letting it cool, and removing electrode wire from the liner before that service work. Follow your workplace's applicable energy-isolation procedures as well.

Do not inspect a hot or energized front end. Where damage presents a safety concern, stop using the equipment and have qualified personnel evaluate it. OSHA 1910.254(d)(6) and (d)(9) require following manufacturer instructions and discontinuing use of defective equipment until safety is assured; repairs are for qualified personnel.

Cleanable buildup or a replacement problem?

Start with an inspection, not an automatic parts order. Tregaskiss's operating guidance for robotic welding applications specifically calls out spatter on the retaining head, blocked gas ports, and carbonized contact surfaces. Use the inspection and cleaning instructions for your own gun; a robotic maintenance instruction is not a substitute for a handheld gun manual.

Record what you find. Is it removable buildup, a visibly damaged thread, a distorted seating surface, or a part that will no longer secure correctly? Clean only by the approved method. Do not enlarge gas holes, force mismatched threads, or use extra tightening as a repair for damaged parts. Visible damage or uncertain seating warrants replacement or qualified inspection before further use.

There is no single useful replacement interval for every shop. Miller's maintenance checklist identifies diffusers among the consumables to replace when wear calls for it and directs users to equipment-specific maintenance instructions. Keep routine nozzle cleaning and spatter control separate from the decision to replace a damaged diffuser.

Match the consumable system before choosing a part

Before buying, put these details together:

• Gun identification: manufacturer, exact model, and any identification label—not only the welding power source's name.
• Installed parts: diffuser, tip, nozzle, and neck part numbers from packaging or the applicable parts diagram.
• Configuration: the consumable family, liner arrangement, and any documented conversion already installed.
• Order quantity: whether the listing sells individual diffusers or a package, and how many packages the shop needs.

A photo can help identify a family, but it should support the part-number check rather than replace it. A useful request to a supplier includes the complete gun model, a photo with the nozzle removed after safe shutdown, and the markings on the old consumables.

Three stocked examples—not interchangeable substitutes

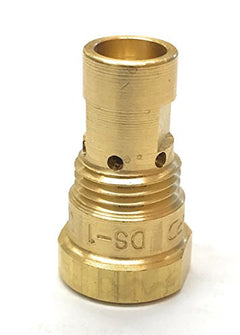

Bernard's Centerfire component listing distinguishes DS-1 as the small diffuser and D-1 as the large diffuser. It also describes Centerfire's threadless, drop-in contact tip. Do not apply threaded-tip installation advice to that system.

ArcWeld currently stocks the Bernard DS-1 small Centerfire diffuser and the Bernard D-1 large Centerfire diffuser. Choose from the manufacturer's matching assembly information, not from size preference or appearance alone.

The Miller D-M250 two-pack is a different example. Miller specifies it for Standard Duty MDX contact tips, nozzles, front-load liners, and power-pin caps in the linked D-M250 documentation. That does not establish compatibility with every Miller gun or every MDX configuration. Confirm the exact installed system before ordering.

A diffuser change can require a liner check

Do not assume the existing liner end is correct simply because a new diffuser threads onto the neck. Bernard publishes a specific installation chart for Centerfire and Quik Tip diffusers with an internal stop, with trim requirements organized by diffuser part number. Use that applicable manufacturer procedure rather than copying a cut length from an unrelated gun.

If a liner was already trimmed incorrectly, ordering a diffuser alone may not address the assembly problem. Review our MIG liner inspection and replacement guide, then verify the liner and diffuser together against the gun's documentation.

Keep the next reorder straightforward

After the correct assembly is confirmed, label the spare-parts bin with the gun model, consumable family, diffuser number, and package quantity. Keep different families separated. Retain the current parts diagram with the maintenance record so the next buyer does not have to identify the same assembly again.

For an uncertain match, use ArcWeld Parts Help before ordering. Send the gun model, existing diffuser and nozzle numbers, and clear photos. The goal is a documented match—not a part that merely looks close.
