When a MIG welder starts stuttering, birdnesting wire, or burning back into the contact tip, it is easy to blame the drive rolls. The real restriction may be farther down the feed path. A dirty, worn, undersized, or kinked gun liner can add enough drag to make an otherwise healthy feeder act unpredictable.
The liner is the conduit that guides electrode wire from the feeder through the gun cable to the contact tip. It has to match the gun, cable length, and wire diameter. Because it is hidden inside the cable, liner wear often gets overlooked until production slows down.
Five signs your MIG gun liner needs attention
- The wire feed surges or hesitates. If the wire speed changes while the drive rolls keep turning, resistance may be building inside the liner. First straighten the gun cable. If feed improves when the cable is straight, inspect the liner and cable for damage.
- You are tightening the drive rolls more than usual. Extra tension can force wire through a restriction for a while, but it may deform the wire, wear the rolls, and make birdnesting worse. Correct roll pressure should move wire smoothly without crushing it.
- Contact-tip burnback keeps returning. A worn tip can cause burnback, but repeated burnback after installing the correct new tip points to an inconsistent feed path. Check the liner along with wire speed, tip size, and gun connection.
- Birdnesting develops near the feeder. A tangle between the drive rolls and gun inlet means the wire cannot move forward normally. Wrong roll tension, a plugged tip, rusty wire, or an incorrect liner can all create the same symptom, so inspect the complete path before replacing parts.
- Wire shavings or dark debris appear at the gun end. Dust, metal fines, and lubricant residue can collect inside a steel liner. Heavy contamination raises friction and can quickly dirty a fresh spool of wire.
Clean it or replace it?
Turn off and disconnect the welding power source before servicing the gun, and follow the gun manufacturer's procedure. Remove the wire before working on the liner. Some manufacturers permit a clean, dry air blowout as routine maintenance for steel liners. Do not add oil or solvent unless the gun manufacturer specifically calls for it; residue can contaminate the wire and weld.

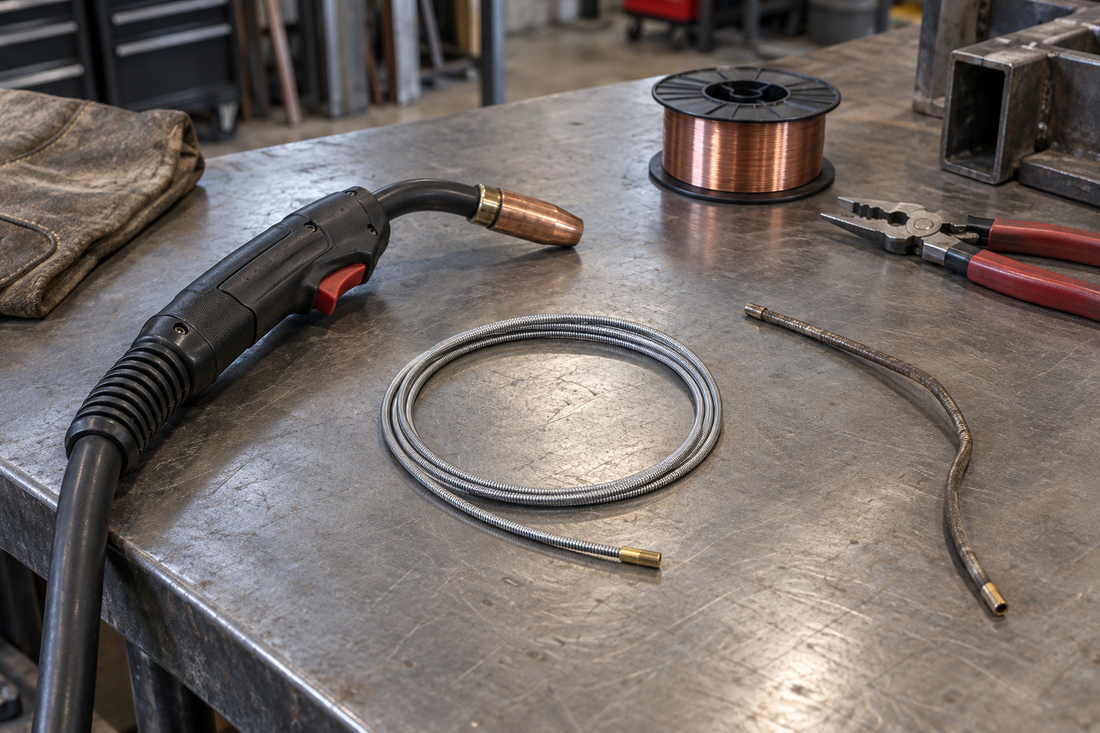

Cleaning is reasonable when the liner is the correct type and size, has no visible bends or crushed areas, and the problem is light dry debris. Replace it when it is kinked, rusted, heavily packed with fines, cut too short, or worn enough that cleaning does not restore smooth feeding. Aluminum and other soft wires may require a polymer liner and different handling, so follow the gun and wire manufacturer's recommendations.
Rule out the simple causes first
Before ordering a liner, inspect the system in sequence. Confirm the spool turns freely and the brake is not overtightened. Verify the drive-roll groove matches the wire type and diameter. Check roll pressure, inlet guides, the gun connection, and the contact tip. Then lay the gun cable as straight as practical and test the feed. This process prevents a new liner from masking a separate setup problem.
Match the replacement to the gun and wire
A liner is not universal. Match the gun family, cable length, wire diameter range, and liner material. Do not assume a liner that fits into the cable is correct. Trimming and installation also vary by gun, and an incorrect cut length can leave a gap that catches the wire.
ArcWeld currently stocks several common options, including the Bernard L4A-15 liner for .035-.045 wire, the Masterweld 194-012 15-foot liner for Miller M-Series guns, and the Lincoln Electric KP35-40-15 liner for .023-.035 wire. Check your gun model and existing part number before choosing. For help confirming fitment, use ArcWeld's Parts Look Up and product help page.
Make liner checks part of routine maintenance
Keep the gun cable from sharp bends, protect wire spools from moisture and shop dust, and inspect the feed path whenever you change a spool. A few minutes of routine maintenance can prevent wasted wire, damaged contact tips, and frustrating stops in the middle of a job.
