A MIG gun neck is not the same part as the nozzle you remove to clean spatter. Often called a head tube or body tube, it is the section between the handle and the front-end consumables. When that assembly is damaged or will not secure correctly, ordering another nozzle may leave the actual problem untouched.

Start with identification and inspection—not a replacement chosen because its bend looks similar. This guide explains what to record before buying a neck and where a model-specific service procedure is essential.

Make the equipment safe before inspecting it

Follow the gun and power-source manuals for shutdown, isolation, and service. Let hot components cool and follow your employer's applicable energy-control procedures. This is not an inspection to perform while the gun is energized.

OSHA 1910.254(d)(6) and (d)(9) require following manufacturer instructions, discontinuing use of defective equipment until its safety is assured, and having repairs made by qualified personnel. A damaged insulating cover or a connection that cannot be secured is a reason to stop and obtain a proper evaluation, not to compensate with extra tightening.

Separate neck damage from consumable wear

Use the applicable parts drawing to identify the neck, insulator, liner, diffuser, contact tip, and nozzle. Miller's Spoolmatic and XR-Pistol literature, for example, identifies separate head-tube and front-end components. A worn consumable and a damaged tube are different repair decisions.

After a drop or collision, record any visible change in shape, cracked covering, damaged mating threads, or unusual movement at the mounting connection. Photograph the condition after safe shutdown. Have questionable damage assessed against the manufacturer's instructions before deciding whether only the neck—or additional parts—need replacement.

Do not diagnose a neck solely from porosity, burnback, or erratic wire feeding. Those symptoms do not identify a replacement part by themselves. Keep the neck inspection separate from the checks in our MIG gas-diffuser fitment guide and contact-tip selection guide.

Identify the gun, not just the welding machine

A shop may have several different guns connected to the same model of power source. Record the gun manufacturer's name, complete model, and serial or code information where provided. Find the applicable manual and exploded parts list; Miller's manuals and parts lookup is one manufacturer-specific starting point.

Then record the installed neck number, cooling arrangement, and consumable system. Keep the complete suffix on a part number. If the gun has been converted or repaired previously, identify the assembly actually installed rather than assuming it still matches the original configuration.

A useful supplier request includes an overall gun photo, a readable identification label, the old part number or packaging, and a close-up of the connection after safe disassembly by the appropriate person. An unidentified loose tube is a much weaker starting point.

Fixed, rotatable, and flexible are different designs

Do not treat these descriptions as interchangeable. Bernard publishes separate procedures for rotatable BTB necks and fixed necks on straight-handle guns. The attachment and service steps differ. A procedure for one assembly is not permission to bend, loosen, or modify another.

The fixed-neck instructions also distinguish newer mounting hardware from the older arrangement. That is a practical reason to check the hardware generation, not merely the outside shape. Use the correct fasteners, insulating pieces, and assembly instructions. Do not improvise thread substitutions or apply a torque value borrowed from a different gun.

For a neck designed to flex, follow that specific product's adjustment limits. For a fixed neck, select an approved geometry rather than trying to create a different bend yourself.

A different length or angle can affect the liner

Before ordering a longer neck or changing its angle, check what else the conversion requires. Bernard's rotatable-neck instructions explicitly state that the liner may need to change when the neck angle or length changes. A replacement tube is therefore not always the whole parts order.

Have the applicable liner, consumable, and mounting requirements confirmed together. Do not reuse a previous trim measurement without checking the new arrangement, and do not guess a universal protrusion length. Our MIG liner inspection and replacement guide can help organize the related checks, but the exact gun instructions control installation.

A specific stocked example: Miller 273232

ArcWeld currently stocks the Miller 273232 flex neck. In the linked manufacturer literature, Miller lists the 10-Inch Flex Head-A 273232 under air-cooled head tubes for Spoolmatic and XR-Pistol applications. The description specifies a flexible head tube that bends 60 degrees in any direction, is supplied with liners, and uses FasTip contact tips.

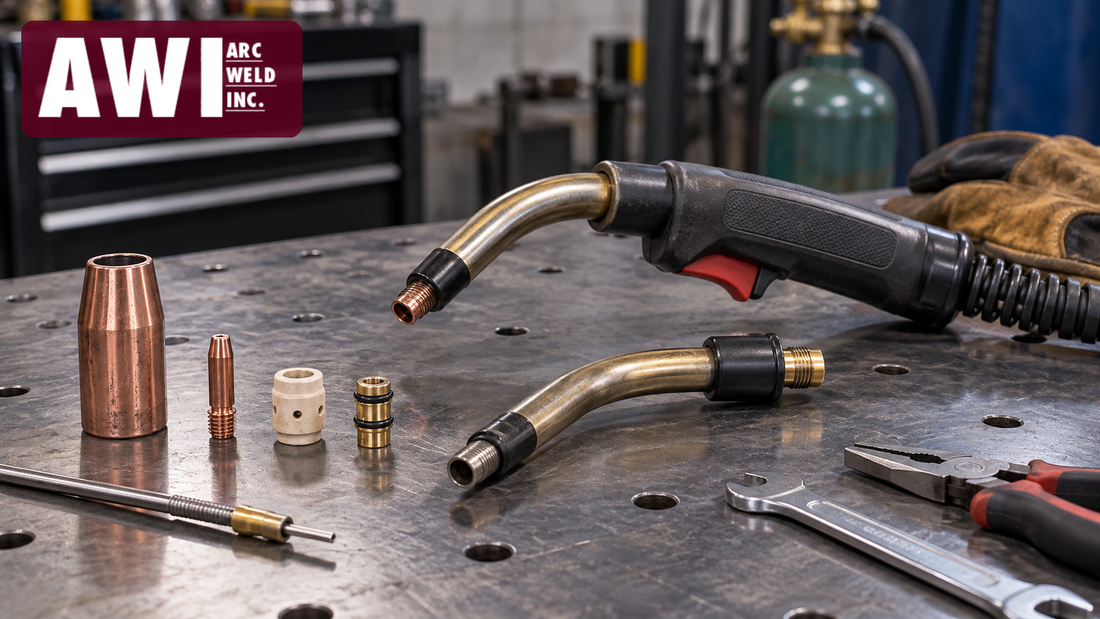

Those are specifications for that identified accessory—not for every Miller gun. Confirm the exact gun model, cooling arrangement, and approved assembly before ordering. Do not infer that the part fits a water-cooled version or another gun family simply because the manufacturer name matches. The generic illustration accompanying this article is not a photograph of the 273232.

Build the order around a documented match

Before approving a replacement, put these details on the order request:

• Equipment: gun make, exact model, identifying code, and cooling arrangement.
• Replacement: manufacturer neck number, approved length and angle, and fixed, rotatable, or flexible design.
• Associated parts: required liner, mounting hardware, insulation, and matching consumables.
• Reference: the applicable manual or parts diagram and any documented conversion.

After installation, complete the manufacturer's inspection and return-to-service checks before welding. A part that threads in is not, by itself, proof of a correct or safe repair. If the mating body, handle, or cable is also damaged, have the full repair scope assessed rather than repeatedly replacing the most visible component.

Keep the verified part number and configuration with the gun's maintenance record. For help identifying an uncertain replacement, send that information through ArcWeld Parts Help. A documented match makes the next repair and reorder much more straightforward.
