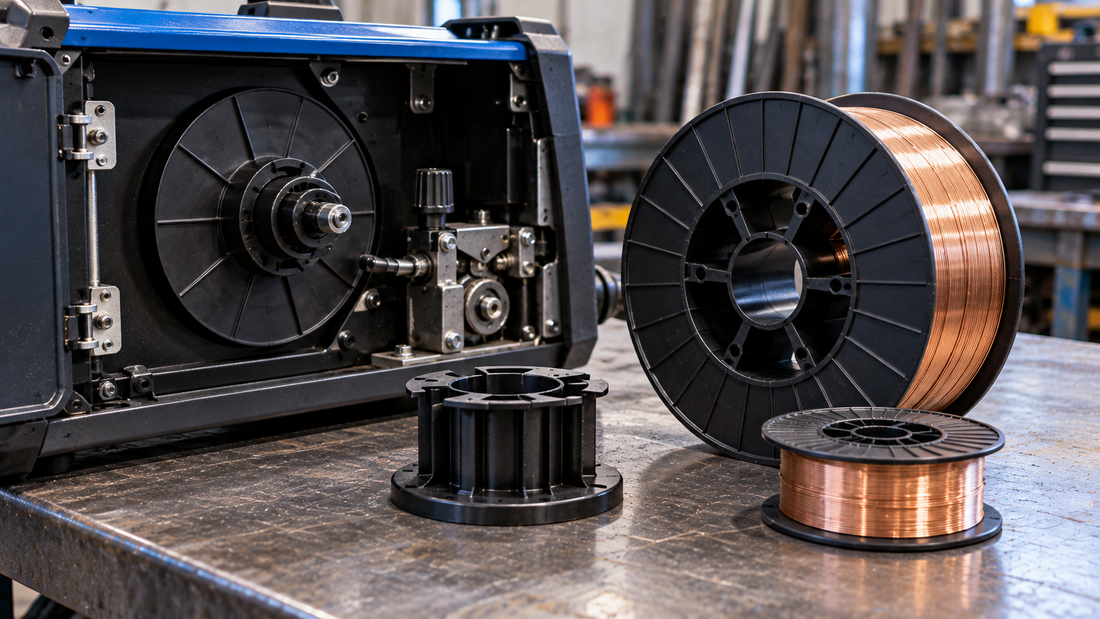

A larger wire spool can reduce changeovers on a compact MIG welder, but only when the machine has the correct spindle adapter and enough clearance for that spool. A wire spool that fits inside the cabinet is not necessarily supported by the hub or brake assembly. Before buying an adapter or loading an 8-inch reel, match the exact welder model and code number to the manufacturer's parts list and operator's manual.

What the spindle adapter actually does

Many compact wire feeders are supplied with a small-spool hub. A larger reel has a different center opening and needs the correct adapter to center and support it on the spindle. The adapter is separate from the wire-feed drive rolls: a spindle adapter locates the reel; the drive rolls grip and feed the wire. Buying the right spool adapter will not make an incorrect drive-roll groove or gun liner compatible with a new wire diameter.

Lincoln Electric's 125/140 wire-feeder operator's manual identifies a 4-inch spool spindle and a 2-inch adapter for 8-inch reels on the covered machines. It also identifies the spool brake adjustment separately. That manual provides evidence for those specific machines; it does not mean every Lincoln 125 or 140, every production code, or every brand of welder accepts the same accessory.

How to identify whether KH720 belongs on your machine

Lincoln's wire-feeder product literature identifies KH720 as a spindle adapter for an 8-inch wire spool on a documented machine configuration. The Weld-Pak 180i MP DV brochure also lists KH720 for 8-inch reels in its included components. These are useful cross-checks, not a complete interchange list.

ArcWeld has a Lincoln Electric KH720 spindle adapter listing. The current catalog title calls out 125/140 feeders, while its internal SKU is 9SM15445-1. That mismatch in identifiers is exactly why the model, machine code and manufacturer's part documentation must be checked before ordering. Do not assume the displayed title alone confirms the contents or compatibility. Ask ArcWeld to verify the supplied package if the marking or machine parts breakdown differs.

Four checks before moving to an 8-inch spool

1. Machine model and code. Read the actual rating/nameplate and its code or serial identifier, not just the model family on the front panel. Find the matching manual and illustrated parts breakdown. A later revision or a different market's machine can use another spindle assembly. If the adapter is already included, buying a second one may be unnecessary.

2. Reel diameter and center opening. Confirm both the reel's outside diameter and the bore/hub format from the wire manufacturer's packaging. An 8-inch outside diameter does not describe its center bore, reel width or load rating. A reel that rubs the enclosure or does not engage the retaining assembly should not be forced into service.

3. Wire type and feeder configuration. Verify the feeder accepts the wire diameter and process being used. The correct smooth or knurled drive roll, liner, contact tip and electrode polarity depend on the wire and machine instructions. A spindle adapter does not expand the welder's process ratings or allow a wire size beyond the maker's limits.

4. Retainer and brake components. The spindle, adapter, spacer/retainer and brake must work together as specified. The Lincoln 125/140 manual says the wing nut adjusts friction to help prevent overrun when the trigger is released. It does not authorize a universal number of turns or a universal torque. Use the procedure for the exact model rather than copying someone else's brake setting.

Spool too tight, too loose, or not seated?

A reel that resists turning can contribute to inconsistent feeding; one that overruns when the wire stops can leave loose loops that tangle. Lincoln's manual separates spool-brake friction from the drive-roll pressure setting. If a reel will not seat correctly, stop and confirm the correct adapter, retainer orientation, hub geometry and reel size. Do not grind the adapter, discard retaining hardware or run an unsecured spool to make a mismatch seem to fit.

For erratic feeding with a correctly mounted spool, check the entire feed path using the welder manufacturer's troubleshooting instructions. Miller's wire-feeder troubleshooting table identifies excessive spool tension, misaligned or incorrect drive rolls, a restricted liner and a contact-tip opening problem as distinct causes of feeding trouble. Replacing a spindle adapter will not repair a worn liner or incorrect contact tip.

Keep machine service and spool changes safe

Shut down, disconnect power and follow the equipment's service instructions before working inside the drive compartment. A feeder can include moving drive components and energized circuits. When the manufacturer instructs operators to advance wire using a trigger or jog function, that is an intentional powered operation requiring its specified safeguards—not a reason to handle exposed moving parts while energized. Follow the site's lockout procedures for work that requires them and refer uncertain repairs to qualified personnel.

Do not change electrode polarity or wire type based on spool size. For example, Lincoln's 125/140 documentation distinguishes the wiring/polarity arrangement for solid-wire MIG and self-shielded flux-cored wire. Confirm the selected process and shielding requirements against the wire data sheet and machine manual. An adapter is a mechanical mounting accessory, not a welding-process conversion kit.

Ordering checklist for a replacement adapter

Before contacting a supplier, have the machine's complete model and code, a photograph of the original spindle and retaining parts, the spool's outside diameter and center opening, and the OEM accessory number from the applicable parts list. If an older adapter is damaged or missing, note exactly which pieces remain on the machine. Confirm whether the replacement is an adapter only or a kit that includes other required hardware; the listing's name is not proof of package contents.

The buying decision is straightforward: establish that the welder supports the intended reel, identify its specified spindle adapter, verify the exact item being supplied, and then follow the machine manual for installation and brake setup. That avoids confusing spool compatibility with wire-feed performance and prevents ordering a part that fits the reel but not the machine.
