A pipe wrap helps establish a reference line around round pipe; it does not make the cut for you. Choosing one starts with the workpiece diameter, the manufacturer's size range, and the condition of its marking edge—not simply the word medium or large on a listing. This guide focuses on cold layout checks before a separate cutting operation.

Start with the manufacturer's diameter range

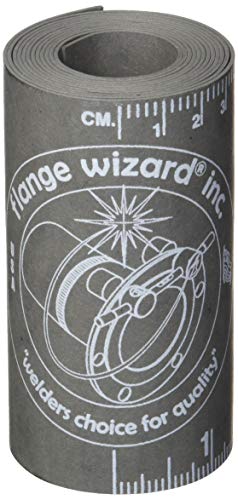

Flange Wizard lists its WW-17 medium wrap at 60 inches long by 3-7/8 inches wide, for pipe diameters from 2 to 16 inches. Its WW-17A large wrap measures 120 inches by 5-1/4 inches, for diameters from 6 to 30 inches. These are that manufacturer's model-specific ranges, not universal definitions of medium and large. Source: Flange Wizard's current pipe-wrap specifications.

Before ordering, confirm the exact stock you are laying out and its outside diameter. Do not substitute an inside measurement, a remembered trade size, or the diameter of insulation surrounding the pipe. When the drawing, material identification, and measurement disagree, resolve that discrepancy before selecting the tool or marking a cut.

For work within the manufacturer's stated range, review the Flange Wizard WW-17 medium pipe wrap at ArcWeld. The link selects the WW-17 variant. Check its current availability on the product page; do not assume that another wrap with a similar name has the same dimensions or application limits.

Why length alone is not a size rating

A useful geometry check is circumference = pi × outside diameter. A round workpiece with an actual 12-inch outside diameter has a circumference of approximately 37.7 inches. That tells you the distance around it. It does not establish a manufacturer's approved minimum overlap, account for a damaged wrap, or qualify an out-of-range application.

For example, subtracting 37.7 inches from a 60-inch strip leaves about 22.3 inches of material beyond one circumference. Treat that as arithmetic, not a new sizing rule. Use the specified product range and the instructions supplied with the wrap. Do not calculate a theoretical maximum diameter from strip length and then advertise it as an additional capacity.

Also consider access. Can the selected wrap sit against the intended marking surface without an adjacent fitting, support, or raised obstruction lifting it? Buying the longest available wrap does not resolve a location where the tool cannot seat properly. A different approved layout method may be the better choice.

Check the reference, not just the line

A square cut is perpendicular to the pipe axis. A line that looks level across the visible top of a pipe is not, by itself, proof that the entire reference is square. Likewise, measuring the same distance from an existing crooked end can reproduce that end's error. Establish the correct dimensional reference from the drawing and your shop's inspection method.

Pipe wraps are intended as layout straightedges. FIT-UP PRO describes their use for circumferential reference lines and pipe-elbow layout, with model-specific charts and markings. Those functions should not be confused with a cutting machine or a fixture that mechanically controls the finished cut. Source: FIT-UP PRO pipe-wrap documentation.

Before accepting a mark, inspect the whole circumference and the overlap area. An offset where the reference should meet is a reason to stop and investigate—not an invitation to bridge the mismatch freehand. Check for a skewed or spiraling wrap, loose seating, an obstruction under the band, or damage to the marking edge. Re-establish the layout using the tool instructions and the job's acceptance criteria.

Common layout problems worth catching early

The line changes when the wrap moves. Separate placement errors from a damaged tool. A nick, crease, or distorted edge can undermine repeatability. Do not treat a worn strip as a precision reference merely because its printed scale is still readable. Where the manufacturer provides no repair method, replace a questionable wrap rather than trimming an edge and assuming its accuracy is restored.

The pipe is irregular where you need to mark. A dent, buildup, or raised feature can prevent uniform contact. Do not force the wrap to follow an unsuitable surface and call the resulting mark square. Have the responsible person select an appropriate reference and inspection method for that workpiece.

The job calls for an angle or saddle, not a square end. Use the specified layout geometry, template, or the manufacturer's applicable chart. Simply skewing a band is not a substitute for establishing the required joint profile. FIT-UP PRO distinguishes straight-line marking from elbow layout and identifies the charts supplied with its wraps; consult the instructions for the actual tool in hand. See the manufacturer's layout-tool description.

The mark is correct but the finished part is short. Keep layout, cutting allowance, and final inspection separate. A wrap does not determine kerf allowance, bevel preparation, root face, or finished-length tolerance. Those decisions belong to the drawing, applicable procedure, cutting-equipment instructions, and job requirements. A welding procedure specification governs the relevant weld-joint preparation where applicable.

A layout wrap is not hot-work protection

Flange Wizard describes its wrap material as non-asbestos and heat resistant, with service up to 320°F (160°C). That statement is not permission to expose the wrap to a cutting flame or use it as a protective barrier. For this cold-layout workflow, remove the wrap before cutting and follow the equipment and workplace hot-work requirements. Source: Flange Wizard material information.

Work only on stock whose condition and support have been confirmed suitable. Do not treat a marked line as authorization to cut installed, pressurized, connected, or unidentified pipe. Isolation and preparation of process equipment require the responsible qualified personnel and the site's procedures.

OSHA's general-industry welding and cutting rule requires fire hazards to be removed or protected and prohibits the work when those precautions cannot be met. It also addresses thorough cleaning of used containers, disconnection or blanking of their connections, and venting of hollow spaces before hot work. These are separate safety requirements; a layout guide does not satisfy them. See 29 CFR 1910.252(a)(1) and (a)(3).

Choose for the work you actually perform

For a useful purchase, match the exact wrap model to the workpiece diameter and available access, confirm the marking edge is sound, and plan how the completed layout will be inspected. Keep the wrap protected between jobs; Flange Wizard supplies its standard wraps in reusable containers. Source: manufacturer packaging information.

The practical goal is a repeatable reference, not just a line that looks convincing from one side. Confirm the diameter and model, establish the correct job reference, inspect the complete layout, and remove the wrap before the separate cutting operation. When the reference does not agree, correct the cause before cutting material.
