Clean plasma cuts depend on more than the machine. The small parts inside the torch - tips, electrodes, nozzles, shields, swirl rings, and retaining parts - decide whether the arc starts cleanly, stays focused, and leaves an edge that needs minimal cleanup.
If a plasma cutter starts leaving heavy dross, bevels one side of the cut, or needs more grinding after every pass, worn consumables are one of the first places to look. ArcWeld carries current plasma consumables, plasma equipment, and brand-specific plasma parts for shops that need practical replacements without guessing.
Why Plasma Consumables Matter
A plasma torch works by focusing a high-temperature arc through a small opening. That opening has to stay round, clean, and matched to the amperage and torch setup. When the parts wear, the plasma stream becomes less stable. The cut may still happen, but the quality drops and the machine has to work harder.
Consumables are not just add-on accessories. They are part of the cutting system. A fresh electrode with a damaged nozzle can still cause poor cut quality. A good nozzle with a cracked swirl ring can still create arc wander. The best results come from treating the torch stack as a system instead of replacing one part at random.
Signs It Is Time to Replace Plasma Consumables
Replace or inspect your plasma consumables when you notice:
- Hard arc starts or an arc that drops out during the cut
- A wider kerf than normal
- More dross on the bottom edge of the material
- One-sided bevel on straight cuts
- A wandering arc or uneven cut line
- Burn marks, oval wear, or spatter buildup on the tip or nozzle
- A deep pit in the electrode face
- Physical damage to the shield or retaining parts
Do not wait until a part fails completely. Running a badly worn electrode or nozzle can shorten the life of the other parts around it and make troubleshooting harder.
What Each Consumable Does

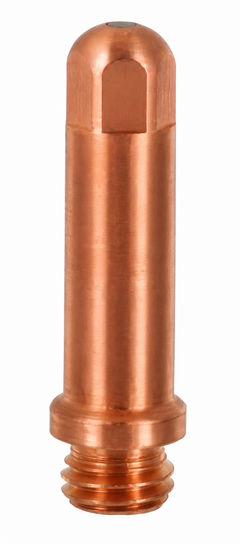

Electrode: The electrode carries the arc inside the torch. It wears from heat and arc time. When the center starts to pit heavily, cut quality usually becomes less consistent. For Thermal Dynamics users, the Thermal Dynamics 9-5633 air electrode for PCH-51/PCM-51 torches is one example of a torch-specific replacement.
Tip or nozzle: The tip/nozzle shapes the plasma stream. It needs to match the amperage and torch model. If the orifice is no longer round, the arc can flare or cut at an angle. Examples currently available from ArcWeld include the Miller 225671 ICE-27C/27T 25 amp tip, 5 pack, the ESAB 33368 30 amp nozzle for Plasmarc PT-27 torches, and the Victor Thermal Dynamics 9-8211 80 amp tip.
Shield or deflector: The shield helps protect the front of the torch from spatter and heat. It should be inspected for physical damage, blocked holes, and heavy buildup. Hypertherm Powermax users can browse options like the Hypertherm 220673 shield for Powermax 45 or the broader Hypertherm plasma collection.
Swirl ring and retaining parts: These pieces help control gas flow and alignment. They may not look as worn as the copper parts, but cracks, plugged holes, or heat damage can still affect arc stability.
Match Consumables Before You Order
The easiest mistake is ordering by appearance instead of torch fitment. Plasma parts can look similar while having different amperage ratings, thread patterns, dimensions, or torch compatibility. Before ordering, check:
- Your plasma cutter model
- Your torch model
- The amperage you plan to cut at
- Whether the part is for hand cutting, drag cutting, gouging, fine cut, or mechanized cutting
- The package quantity and SKU
If you are not sure, use the model and part number together. ArcWeld product pages list part numbers and fitment notes where available, and the team can help confirm parts before you order.
How to Make Plasma Consumables Last Longer
Replacement parts are normal, but premature wear usually points to setup or maintenance. To get better life from tips, electrodes, and shields:
- Keep air dry and clean. Moisture and oil in compressed air can shorten consumable life.
- Use the correct amperage for the installed tip or nozzle.
- Maintain proper standoff or drag technique for your torch setup.
- Do not pierce too low, especially on thicker material.
- Clean spatter from the shield when it starts to block airflow.
- Replace electrodes and nozzles as a set when wear patterns point to both parts.
What to Keep on the Shelf
For a busy fab shop, maintenance crew, or farm repair setup, plasma consumables are worth stocking before the last one is used. A practical shelf setup includes the most common amperage tips/nozzles, matching electrodes, shields, and any torch-specific swirl rings or retaining caps you rely on.
Start with your machine and torch model, then build a small kit around your common cutting jobs. If your shop cuts several thicknesses, keep consumables for each amperage range clearly separated so the wrong tip does not get installed during a rush.
The Bottom Line
If plasma cut quality changes, check the consumables before assuming the machine is the problem. A worn electrode, out-of-round nozzle, damaged shield, or restricted gas flow can all create rough edges and inconsistent arc starts.
Browse current ArcWeld plasma consumables, plasma equipment, and brand-specific options like ESAB / Thermal Dynamics plasma parts and Hypertherm plasma equipment to match the parts to your torch and cutting setup.
