A plasma cutter can have a clean electrode and nozzle but still cut poorly if the swirl ring is damaged or the wrong ring is installed. The swirl ring is part of the torch's gas-management system, not a generic spacer. Before buying one, identify the exact power supply, installed torch, and consumable arrangement. A model name by itself is not enough when multiple torch generations or cartridge options exist.

This guide explains what a swirl ring does, the visible problems worth checking, and how to distinguish four genuine Hypertherm replacement numbers currently listed at ArcWeld. It does not replace the assembly diagrams and safe-service instructions for your specific machine.

What a plasma swirl ring actually does

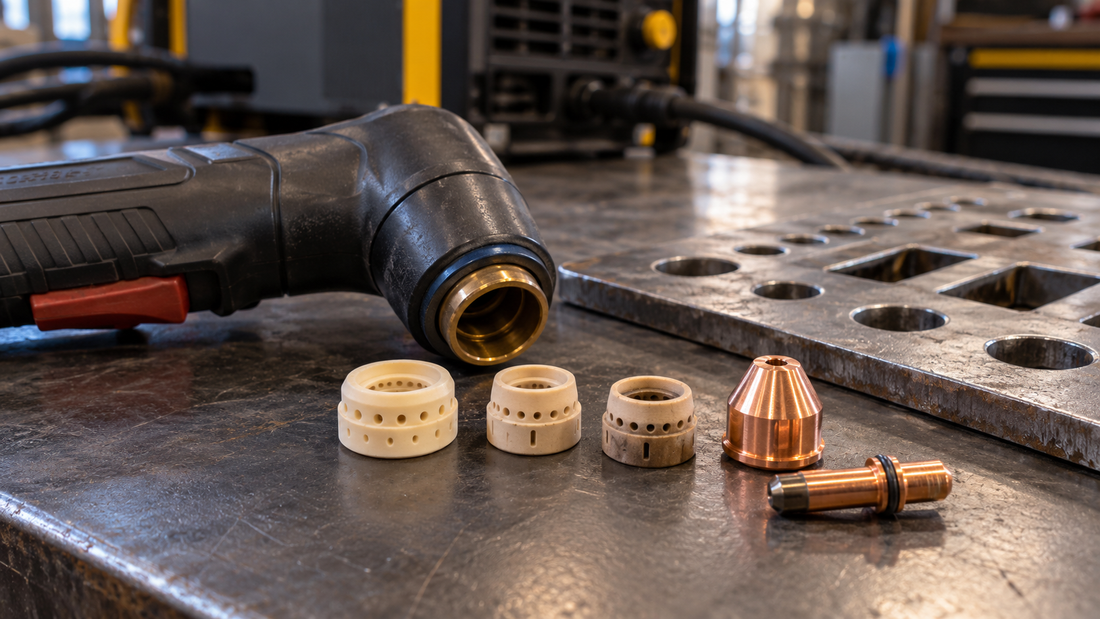

In conventional multi-piece plasma consumable stacks, the swirl ring directs gas around the electrode and through the nozzle area. Its passages influence the way gas reaches the arc and exits the tip. Hypertherm's consumable inspection guidance explains the gas-swirl function and why unobstructed holes and sound sealing surfaces matter. The ring does not supply air, regulate pressure or replace a damaged electrode or nozzle.

It also should not be treated like a contact tip that automatically gets replaced after a set amount of welding. Hypertherm's Powermax preventive-maintenance guidance calls for regular inspection of the swirl-ring surface for excessive wear or cracks. Replace a ring because an appropriate inspection finds damage or the manufacturer's instructions require replacement, not because another consumable has reached the end of its life.

When to inspect or replace the ring

Switch off and safely isolate the cutter, let the torch cool, and follow its operator/service manual before opening the torch. With parts removed only as the manual permits, inspect for cracks, distortion, deep heat damage, obstructed gas passages, and damaged sealing surfaces. Do not gouge the small gas holes, force a ring into place, or attempt to repair a cracked part with adhesive.

Hypertherm's Powermax 0-30 fault troubleshooting instructions specifically direct users to examine whether the swirl ring is deformed or damaged and replace it when damage is found. A displayed fault does not prove the swirl ring alone is defective: other consumables, the torch and the power source can also require inspection. Follow the procedure for the actual machine and full fault code rather than assuming every Powermax has the same diagnostics.

For deteriorating cut quality without a fault code, inspect the ring alongside the electrode, nozzle, shield, retaining cap and gas-delivery system. Damaged consumables, incorrect setup and contaminated or insufficient air can also affect results. Keep the parts in order as you inspect so a plausible-looking but incompatible ring is not accidentally substituted.

Four Powermax swirl-ring part numbers that are not interchangeable by name

420133 — Powermax30 AIR: Hypertherm identifies 420133 as the AIR T30 swirl ring for the Powermax30 AIR arrangement, with an identified operating range of 15–30 A. ArcWeld lists the Hypertherm 420133 replacement ring. The similar-sounding Powermax30 XP is a different system: confirm the installed torch and its consumable chart instead of ordering on the word '30' alone.

220670 — original Powermax45/T45: Hypertherm's Powermax45 T45 consumables chart identifies swirl ring 220670 for listed 45 A configurations, and the part-specific page also identifies this number. The 220670 swirl ring at ArcWeld is not a universal replacement for every later Powermax45 model or a different torch style. First confirm the original T45 consumable stack.

220857 — Duramax and Duramax Lock: Hypertherm's 220857 manufacturer page describes applicable Duramax/Duramax Lock arrangements over the listed 10–85 A range. ArcWeld's 220857 product listing is relevant to certain Powermax65/85 torch configurations. That does not mean the ring fits a newer cartridge-based torch setup or every process stack sold for those machines.

220994 — higher-current Duramax stacks: Hypertherm lists 220994 for specified Powermax105 Duramax applications, including an 85–105 A operating range. ArcWeld lists the 220994 swirl ring. Use the exact 105 A consumable chart, intended cutting or gouging process, and torch type rather than assuming 220857 and 220994 can be swapped simply because both belong to the Duramax family.

Multi-piece consumables versus cartridge systems

Some Powermax setups use separate shield, retaining cap, nozzle, electrode and swirl ring. Others use a cartridge system or an approved cartridge conversion that combines functions differently. Hypertherm's Duramax Lock consumable reference documents cartridge options and the older multi-piece stacks they replace. If the installed torch is running the appropriate cartridge system, do not order a loose swirl ring as though it were a normal replacement part for that cartridge.

Machines sharing the 'Powermax' name can ship with different torches, be upgraded, or have had a torch replaced. Identify the part number on an intact existing ring when readable and cross-check against the manufacturer's chart for the installed torch. If the existing part is badly damaged or unmarked, consult the torch manual or supply the torch identification to a parts specialist instead of guessing from photographs.

A practical inspection and ordering checklist

• Read the nameplates: record both the cutter model and installed torch model/generation.
• Identify the consumable system: separate parts, single-piece cartridge, or an approved converted arrangement.
• Find the correct manufacturer chart: match the cutting/gouging process and the actual nozzle/electrode stack.
• Check condition safely: inspect for cracking, warping, plugged passages and seals without energized testing.
• Order the exact number: compare the full OEM number, unit/package quantity and part description, not just an amp number.
• Check associated parts: evaluate the nozzle, electrode, retaining cap and gas supply rather than using a new ring to mask another problem.

ArcWeld's broader plasma consumables replacement guide covers wear decisions for other torch-tip components. For any plasma cutting job, follow the machine's safety instructions and the applicable eye, face, ventilation and hot-work precautions, including OSHA's general cutting and welding requirements. Do not open or service a powered torch or troubleshoot live high-voltage components without qualified authorization.

What to send ArcWeld if the part number is uncertain

Send the power-source make and exact model, the installed torch name or ID, an image of the existing consumable stack laid out in order, the old part number if legible, and the cutting process you are using. State whether the torch uses loose parts or a cartridge. Those details help identify the correct ring without suggesting that two similar-looking consumables are interchangeable. Availability can change, so confirm the precise listing and quantity at checkout.
