TIG Gas Lens Setup Guide: When Better Shielding Is Worth It

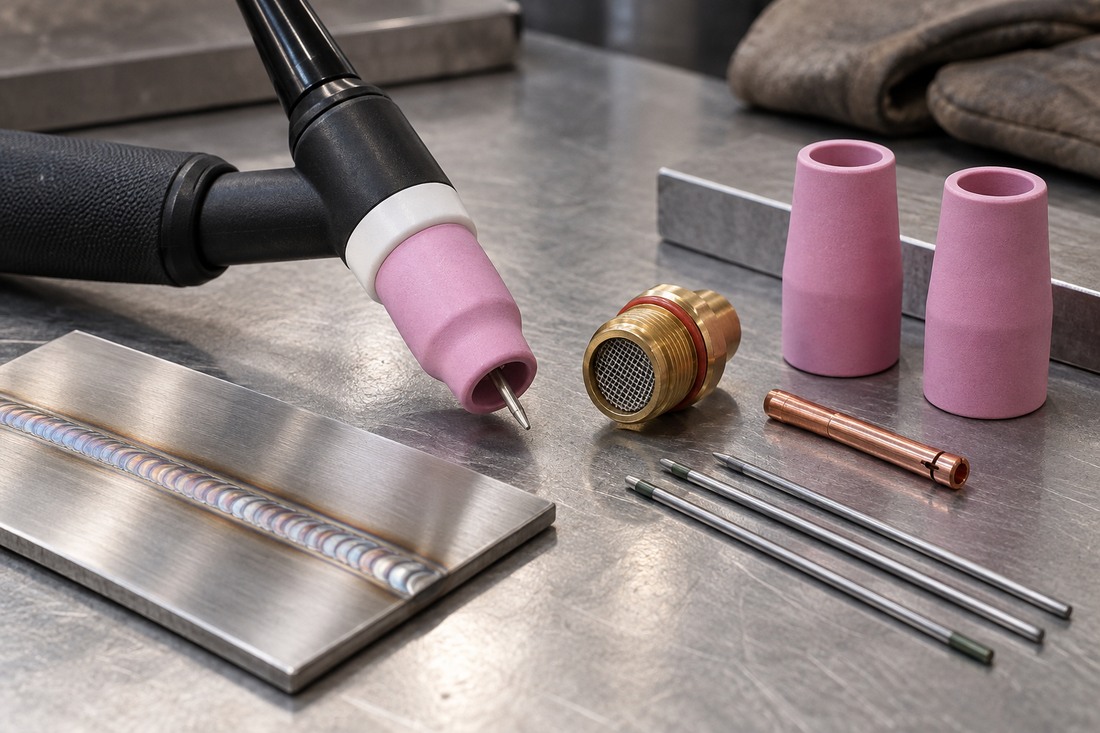

TIG torch with ceramic cup, gas lens, collet and tungsten electrodes beside a stainless steel weld on a workbench.

Clean TIG welds depend on more than amperage and travel speed. Shielding coverage has to stay steady around the tungsten and puddle, especially on stainless steel, aluminum, thin material, outside corners, and any joint where the torch angle changes as you move.

A TIG gas lens helps by replacing the standard collet body with a diffuser screen that smooths argon flow before it exits the cup. The result is a wider, calmer shielding envelope, which can help reduce porosity, oxidation, tungsten contamination, and uneven color. It is not required for every TIG job, but it is worth understanding when better gas coverage can save time and cleanup.

What a TIG gas lens does

On a standard TIG torch setup, shielding gas moves through the torch body and out around the tungsten. A gas lens adds fine screens inside the collet body, turning turbulent flow into a smoother column of shielding gas. That smoother flow can protect more of the puddle and hot metal without forcing the operator to flood the weld with unnecessary gas flow.

For shops that want a ready set of common parts, ArcWeld stocks the CK SGL-KITM Stubby Gas Lens TIG Accessory Kit. It covers common tungsten sizes and is a practical way to convert many standard TIG torch setups to a stubby gas lens arrangement.

When a gas lens is worth using

A gas lens is most useful when the weld benefits from extra shielding coverage or a longer tungsten stickout. That can include stainless tube, sanitary work, aluminum edges, tight inside corners, fixture work, and jobs where the cup cannot sit close to the joint.

If the weld is showing gray color, sugaring near the edge of the shielded area, pinholes, or inconsistent arc starts, check gas coverage before blaming filler metal or machine settings. Gas leaks, a damaged cup, wrong cup size, poor torch angle, drafts, or a worn collet can all make a good weld look bad.

Match the gas lens to the torch series

Gas lens parts are not universal. Torch series matters. Common air-cooled and water-cooled torches use different cup, collet body, collet, and back-cap families. Before ordering, confirm the torch number and tungsten diameter.

For 17, 18, and 26 style torches, ArcWeld has large diameter gas lens options such as the Large Diameter TIG Gas Lens Collet Body for 17/18/26 Torches, 1/8 in., the TIG Gas Lens Collet Body 45V27, 1/8 in., and the TIG Gas Lens Collet Body 45V26, 3/32 in.. For smaller 9, 20, 24W, and 25 style torches, the Weldmark TIG Small Gas Lens Collet Body 45V45, 1/8 in. fits the smaller torch family.

Choose the right cup size

The cup controls how the gas lens coverage reaches the weld. A larger cup can protect a wider area, but it may limit access in tight joints. A smaller cup improves access but gives less shielding coverage. The right choice depends on joint access, material sensitivity, and how far the tungsten needs to extend beyond the cup.

ArcWeld carries both alumina and glass cup options. Examples include the CK 3P8GS Size 8 Glass Cup, the Weldmark by CK 53N87 Alumina Nozzle for Large Gas Lens Torch, and the Weldmark by CK 53N61S Alumina Nozzle for Small Gas Lens Torch.

Use a sound collet and back cap

A gas lens cannot hold the tungsten correctly if the collet is worn, split, overheated, or mismatched to the tungsten diameter. A loose tungsten can wander, contaminate the weld, or make arc starts feel inconsistent. The back cap matters too because it clamps the tungsten through the collet and seals the rear of the torch.

For torch maintenance, ArcWeld stocks supporting parts like the Weldmark TIG Collet for 9/20/25 Torches, 3/32 in., the CK 4C116GS Gas Saver Collet, 1/16 in., and Weldmark back caps for 17/18/26 torches in short, medium, and long lengths.

Set gas flow without overdoing it

More argon flow is not always better. Too much flow can create turbulence at the cup and pull shop air into the shielding envelope. Too little flow leaves the tungsten and puddle exposed. Start with the machine and torch manufacturer's guidance, then adjust for cup size, joint access, and shop conditions.

If a weld suddenly starts showing porosity or discoloration, check for drafts, a loose gas connection, cracked cup, leaking torch body, contaminated tungsten, and poor fit between the gas lens and cup. A gas lens works best when the rest of the gas path is sealed and clean.

Pair shielding with the right tungsten

Shielding and tungsten condition go together. A contaminated or poorly ground tungsten can make an otherwise good gas setup look unstable. Match tungsten type and diameter to the material, amperage range, polarity, and shop preference.

ArcWeld has common CK tungsten options including CK 1.5% Lanthanated Tungsten, 3/32 in., CK 2% Ceriated Tungsten, 3/32 in., CK 2% Thoriated Tungsten, 3/32 in., and CK Pure Tungsten Green, 3/32 in..

Quick setup checklist

  • Confirm the torch series before choosing gas lens parts.
  • Match the gas lens and collet to the tungsten diameter.
  • Choose a cup size that balances shielding coverage and joint access.
  • Check the cup, collet, and back cap for damage before troubleshooting machine settings.
  • Set argon flow high enough for coverage, but not so high that it creates turbulence.
  • Keep tungsten clean, properly prepared, and protected from drafts.

A TIG gas lens is a small torch-side change that can make shielding more forgiving and weld appearance more consistent. When the torch setup is matched correctly, parts like gas lens collet bodies, cups, collets, back caps, and tungsten all work together to keep the arc stable and the puddle protected.
