TIG Torch Power Cables: How to Match Series, Length, and Connector

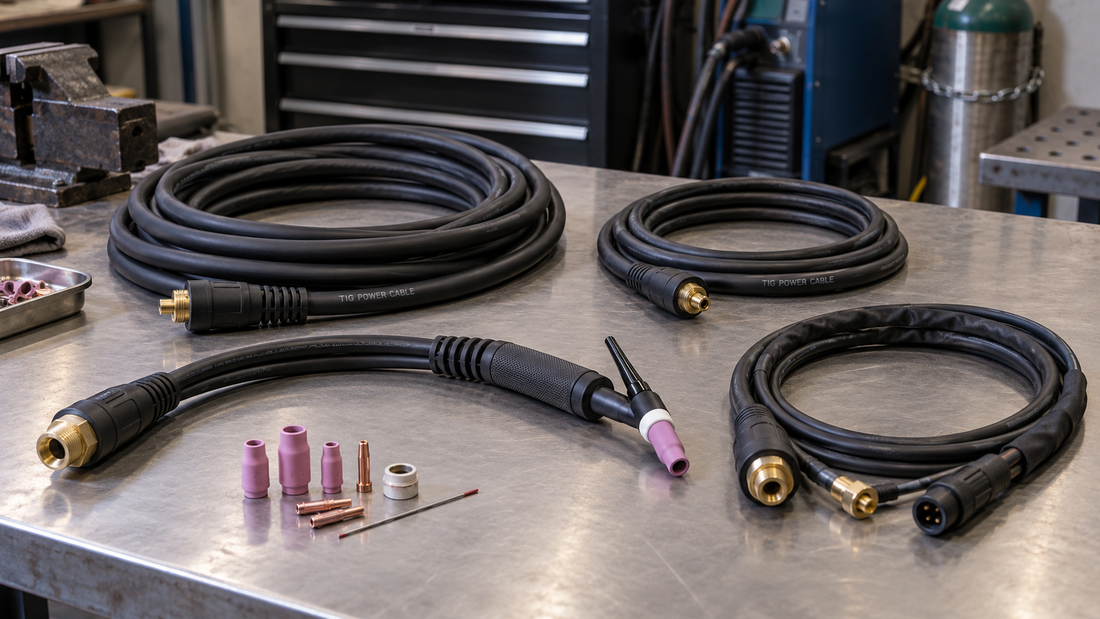

TIG torch power cables, connectors, torch handle, and consumables arranged on a welding workbench

A TIG torch power cable is easy to misidentify because the replacement has to match more than the cable length. The torch family, cable layout, machine-side fitting, and whether the setup is gas-cooled all matter. Two cables can look similar on a bench and still be wrong for the torch or the power source.

For air-cooled TIG torches, start with the torch series and the exact part-number family before comparing price or length. WeldTec's current Twister power-cable sheet lists 57Y01SFT and 57Y03SFT for 9 and 17 series torches, while 46V28SFT and 46V30SFT are listed for 26 series torches. The same sheet identifies the 57Y01SFT and 46V28SFT as 12.5-foot assemblies and the 57Y03SFT and 46V30SFT as 25-foot assemblies. See the manufacturer's Twister power-cable sheet.

1. Identify the torch series before the cable

The torch model is the first fitment checkpoint. A 9/17-family cable should not be selected just because the connector appears similar to a 26-series cable. CK Worldwide's current replacement tables also separate these families: its CK9/CK17 cable table uses the 57Y01/57Y03 family, while its CK26 table uses the 46V28/46V30 family. Those manufacturer tables are useful cross-checks when an old cable label is missing or a listing description is incomplete. See CK Worldwide's CK9/CK17 cable table and CK26 cable table.

If the torch body is marked 9, 17, 26, or a related manufacturer model, record that number before ordering. Also record the old cable part number if it is still legible. When both pieces of information are available, use them together rather than relying on appearance.

2. Match 12.5-foot versus 25-foot length intentionally

Length affects routing, reach, and how much cable has to be managed around the work area. Longer is not automatically better. A 25-foot cable can be useful when the operator needs to reach a fixture or large table, but extra cable also has to be routed so it is not damaged, sharply bent, or placed where traffic can run over it.

For a 9/17-series Twister setup, ArcWeld currently carries the Weldtec 57Y03SFT 25-foot SuperFlex Twister power cable. For a 26-series setup, ArcWeld currently carries the Weldtec 46V28SFT 12.5-foot SuperFlex Twister power cable. Both products were active and in stock when this guide was prepared; always re-check the live product page before ordering because inventory changes.

3. Confirm one-piece versus two-piece cable layout

Do not assume every air-cooled TIG torch uses the same hose-and-lead arrangement. CK Worldwide publishes separate part numbers for one-piece cables, two-piece assemblies, weld leads, and argon hoses. That distinction matters when replacing only part of an existing assembly.

Before buying a cable, follow the existing torch from the handle back to the machine and identify whether the setup is a single combined assembly or separate leads/hoses. If the old setup is two-piece, replacing it with a one-piece assembly may require different fittings or adapters. If the old setup is one-piece, verify that the replacement cable thread and machine connection match the torch package you actually have.

4. Check the machine-side connector separately

The torch-side cable family and the welder-side connector are two different fitment questions. A correct 26-series cable still may not plug directly into a machine that uses a different Dinse size, lug connection, or separate gas connection.

CK Worldwide identifies its gas-through Dinse 35M Safe-Loc connector as a 1/2-inch / 12.8 mm connector family and maps the SL8-35M to CK26/TL26 torches. See CK's Dinse 35M Safe-Loc connector guide. ArcWeld also stocks the CK SL8-35M gas-through connector.

Do not select a Dinse adapter by visual size alone. Record the welder model, existing output connector size, whether shielding gas passes through the connector, and the torch series. If you are changing from a lug-style output to Dinse or from a separate-gas arrangement to a gas-through connector, confirm the adapter with the torch or machine manufacturer before energizing the system.

5. Inspect the old cable before deciding to reuse it

A replacement decision is not only about fitment. OSHA's arc-welding rule states that cables with damaged insulation or exposed bare conductors must be replaced, and that connecting means used for welding cables must have insulation adequate for the service conditions. OSHA also states that equipment defects or safety hazards should be reported and equipment use discontinued until safety has been assured. See 29 CFR 1910.254.

Before reusing an older torch cable, inspect the full accessible length for cuts, flattened sections, melted areas, damaged strain relief, loose fittings, and any exposed conductor. Do not tape over exposed conductor and put the torch back into service as a normal repair. If the cable or connector condition is uncertain, remove the torch from service and have qualified personnel evaluate it.

6. Shut the machine down before cable replacement

WeldTec's Twister installation note specifically says to turn the welding machine off or disconnect it from the power source before installation. Follow the torch and welder manufacturers' service instructions for the actual machine and torch being repaired. If the work requires opening the welding power source or modifying internal connections, that is beyond a routine external torch-cable replacement and should be handled by qualified service personnel.

A simple ordering checklist

  • Record the TIG torch series: 9, 17, 26, or the exact manufacturer model.
  • Record the old power-cable part number when available.
  • Choose the needed cable length: commonly 12.5 or 25 feet for these families.
  • Identify one-piece versus two-piece cable/hose layout.
  • Identify the machine-side connector: Dinse size, lug, separate gas, or gas-through.
  • Inspect the old cable and connector for insulation or conductor damage before reuse.
  • Confirm the final part number against the current manufacturer table.

If your uncertainty is at the machine connection rather than the torch, the related ArcWeld guide Welding Cable Connectors: Dinse vs. Lenco LC-40 and How to Match Them covers the connector side in more detail.

When ordering TIG torch parts, the safest shortcut is not to guess from a photo. Match the torch series, exact cable family, length, cable layout, and machine-side connection. That small amount of identification work prevents most wrong-cable orders and gives you a cleaner path to diagnosing a torch that is already showing cable or connection problems.
