A stable TIG arc depends on a clean, correctly prepared tungsten electrode. One quick dip into the weld puddle or touch against filler metal can leave the tip contaminated, change the arc shape, and send you chasing machine settings that were not the original problem.

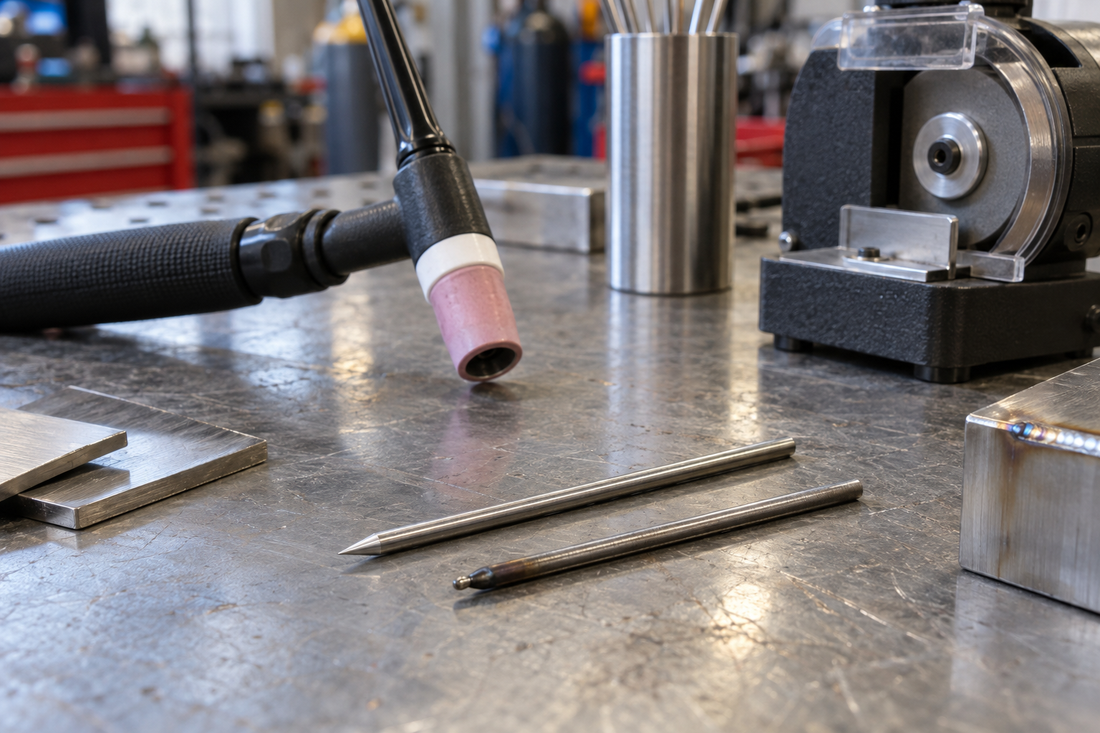

What tungsten contamination looks like
Stop and inspect the electrode when the arc suddenly wanders, becomes difficult to start, or loses its usual focus. A darkened or misshapen tip, a tiny metal deposit, or visible material stuck to the tungsten are practical signs that the electrode needs attention. Miller notes that touching the workpiece changes the sound and color of the arc and contaminates the electrode in its TIG process guide.
Do not keep welding and hope the contamination burns away. It can contribute to an unstable arc and introduce unwanted material into the weld. Let the torch and electrode cool as required, then follow the equipment manufacturer's removal and service instructions.
Regrind the clean material, not just the surface
When the tip has picked up weld metal, remove the contaminated section before reshaping the electrode. CK Worldwide's GTAW troubleshooting guide recommends removing approximately 3/8 inch (10 mm) of contaminated tungsten and regrinding it. Miller's aluminum repair guidance gives a similar principle: cut back beyond the affected area instead of only polishing the outside.
Use the cutting method recommended by the electrode or grinder manufacturer. Avoid bending or using a tool that can leave cracks. If too little usable length remains for the torch and back-cap arrangement, replace the electrode.
Use a dedicated grinder and grind lengthwise
Prepare the clean end on a fine, hard abrasive wheel or a tungsten grinder reserved for that job. A wheel used on carbon steel, aluminum, or other shop work can transfer contamination back to the electrode. Grind so the scratches run parallel to the electrode centerline, not around it. The Miller TIG owner's manual shows that lengthwise grinding supports a stable arc while radial grinding can cause arc wandering.
Match the point angle, tip flat, and preparation method to your TIG power source, polarity, amperage, and electrode manufacturer. Modern inverter AC and DC setups may use a pointed preparation, while some older conventional AC procedures call for a balled end. Your machine manual is the deciding reference.
Control grinding dust safely
Grinding tungsten produces fine dust and sparks. Use local exhaust or the respiratory protection specified by the manufacturer, wear eye and hand protection, and keep flammables away. Thoriated electrodes require particular care because their grinding dust contains low-level radioactive material; follow the safety data sheet and local disposal requirements.
Choose the right replacement electrode
When an electrode is too short, cracked, repeatedly contaminated, or wrong for the application, replacement is the better choice. ArcWeld currently stocks several options, including:
- CK 2% Lanthanated Tungsten, 3/32 inch x 7 inch, 10 pack
- CK LaYZr Tungsten, 3/32 inch x 7 inch, 10 pack
- CK 1.5% Lanthanated Tungsten, 1/16 inch x 7 inch, 10 pack
Do not select by color band or diameter alone. Confirm the alloy, diameter, polarity, amperage range, and machine guidance for the material you are welding. Keep clean electrodes separated by type and size, and store prepared pieces where they cannot collect grinding dust, oil, or shop debris.
A quick tungsten check before changing settings can save time and protect weld quality. When the arc changes suddenly, inspect the tip first, remove contamination completely, regrind correctly, and replace the electrode when it no longer has enough clean, usable length.
