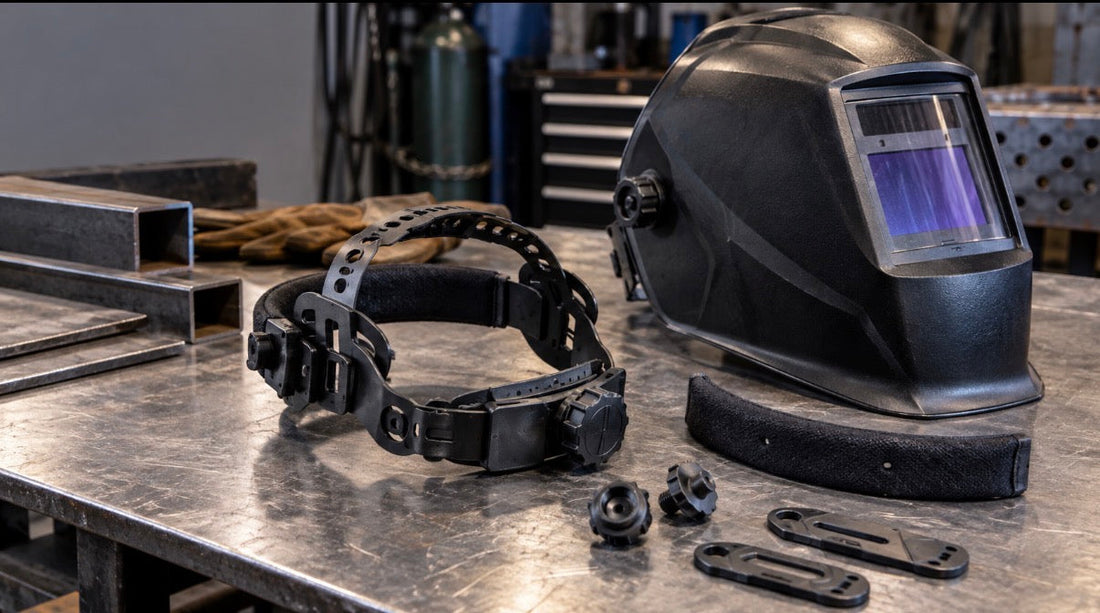

Welding helmet headgear is easy to ignore because it is not the lens, shell, or auto-darkening filter. But worn suspension can make a good helmet frustrating to use: the hood creeps down, the ratchet slips, the shell will not stay in the raised position, or the operator has to overtighten the headband just to keep the helmet stable.

The practical rule is simple: match replacement headgear to the helmet model, inspect the adjustment hardware before every use, and replace damaged or unreliable parts instead of improvising repairs. The headgear is part of the complete helmet assembly; it does not change the required filter shade or eliminate the need for primary eye protection.

Why headgear condition matters

OSHA requires helmets or hand shields during arc welding and arc cutting operations, and its welding rules specify that the helmet arrangement must protect the face, neck, and ears from direct radiant energy. OSHA's PPE selection guidance also notes that welding helmets should be worn over appropriate primary eye protection such as safety spectacles or goggles. See 29 CFR 1910.252(b)(2) and OSHA's PPE selection guidance.

Headgear does not provide the filter protection by itself, but it positions the helmet on the head and controls how the shell pivots. If the suspension no longer holds its adjustment, the operator may compensate by cranking the ratchet tighter than necessary or continually repositioning the hood. That is a fit problem worth correcting before the next weld.

Signs the headgear needs inspection or replacement

Remove the helmet from service long enough to inspect the suspension when you notice any of the following:

• The ratchet slips. The band tightens but backs off, skips teeth, or will not hold a consistent head size.
• The helmet creeps downward. Pivot hardware or adjustment points no longer hold the shell where you set it.
• Bands are cracked, stretched, or distorted. Plastic suspension parts that have lost their shape may no longer distribute the helmet load as intended.
• Adjustment knobs bind or turn without effect. Do not force stripped or damaged hardware.
• Padding or sweatbands are saturated, torn, hardened, or difficult to clean. Replace serviceable comfort components when they no longer perform their job.
• You have to overtighten the suspension to keep the hood stable. First readjust crown height, fore/aft position, tilt, and pivot tension according to the helmet manual. If the parts will not hold those settings, replacement is the next step.

Before welding, also inspect the shell, filter assembly, cover lenses, and related hardware. A new headgear assembly does not make a damaged helmet shell or faulty auto-darkening filter serviceable.

Adjust the suspension before assuming it is worn out

Many welding helmets provide more than one headgear adjustment. Typical adjustments include head circumference, crown height, distance from the face, tilt angle, and the tension that controls how the hood raises and lowers. The exact procedure varies by manufacturer and model.

Miller's current Gen IV Headgear 260486, for example, uses pivoting top and back bands and multiple adjustment points. Miller specifically identifies that assembly for T94 helmets. That is why ordering by appearance alone is a poor fitment method.

Set the head size so the suspension is secure without creating pressure points. Then adjust crown height and fore/aft position so the lens sits where the manufacturer intends relative to the eyes. Finally, set the pivot or tilt tension so the shell moves predictably and stays in position. If an adjustment is available, use it before deciding that the answer is simply a tighter ratchet.

Match the replacement by manufacturer part number

Replacement welding headgear is not universal. Mounting points, pivot hardware, band geometry, shell clearance, and adjustment mechanisms vary between helmet families. The safest ordering sequence is:

1. Record the helmet manufacturer and exact model or series.
2. Find the replacement-parts section of the current manufacturer manual or product page.
3. Match the headgear part number, not just the visual shape.
4. Confirm whether pivot hardware, sweatbands, pads, or adapters are included or sold separately.
5. Reassemble the helmet according to the manufacturer's instructions and perform the required pre-use inspection.

ArcWeld currently has the Miller 260486 Gen IV Headgear in stock. Miller's own product page specifies that 260486 is for T94 helmets, so do not assume it fits another Miller helmet family simply because the mounting hardware looks similar.

ArcWeld also currently stocks the Jackson Safety 20696 370 Replacement Headgear. Jackson's current 20696 manufacturer page identifies it as the 370 Speed Dial replacement suspension and lists its adjustment features and compatible helmet families. Use that manufacturer fitment list rather than treating it as a generic replacement.

Sometimes the comfort part is the only worn part

If the suspension is mechanically sound but the contact surface is uncomfortable, dirty, or worn, a replacement pad may solve the problem without replacing the complete headgear. John Tillman & Co. lists both the 560 and 561 sheepskin headgear pads in its current helmet-accessory catalog.

ArcWeld currently has both the Tillman 560 headgear pad and Tillman 561 headgear pad in stock. Treat pads as comfort accessories: verify the headgear style and attachment method before ordering, and do not use added padding to compensate for cracked or malfunctioning suspension parts.

Do not fix a fit problem by defeating the helmet design

Avoid drilling new mounting holes, substituting unrelated hardware, taping broken pivots, or installing a suspension that the helmet manufacturer does not list for the shell. Those changes can alter how the helmet sits and moves. If the correct parts are unavailable, keep the helmet out of service until the proper replacement can be identified.

For related maintenance, see our welding helmet cover-lens guide and welding helmet lens-shade guide. If you are unsure which headgear fits your hood, use ArcWeld Parts Help with the helmet brand, model number, and current headgear part number before ordering.

Quick headgear check before the next weld

• Ratchet holds its setting without slipping.
• Crown and fore/aft adjustments are secure.
• Pivot hardware moves smoothly and holds position.
• Bands and mounting tabs are not cracked or distorted.
• Sweatband or pad is clean and serviceable.
• Replacement part number matches the helmet family.
• Helmet shell, cover lenses, filter, and primary eye protection are also ready for use.

Headgear is a maintenance item, not an afterthought. A correctly matched, properly adjusted suspension helps the helmet stay where the manufacturer designed it to sit and can restore comfort without replacing the entire hood.
