Welding Magnets: How to Keep Your Tack-Up Square

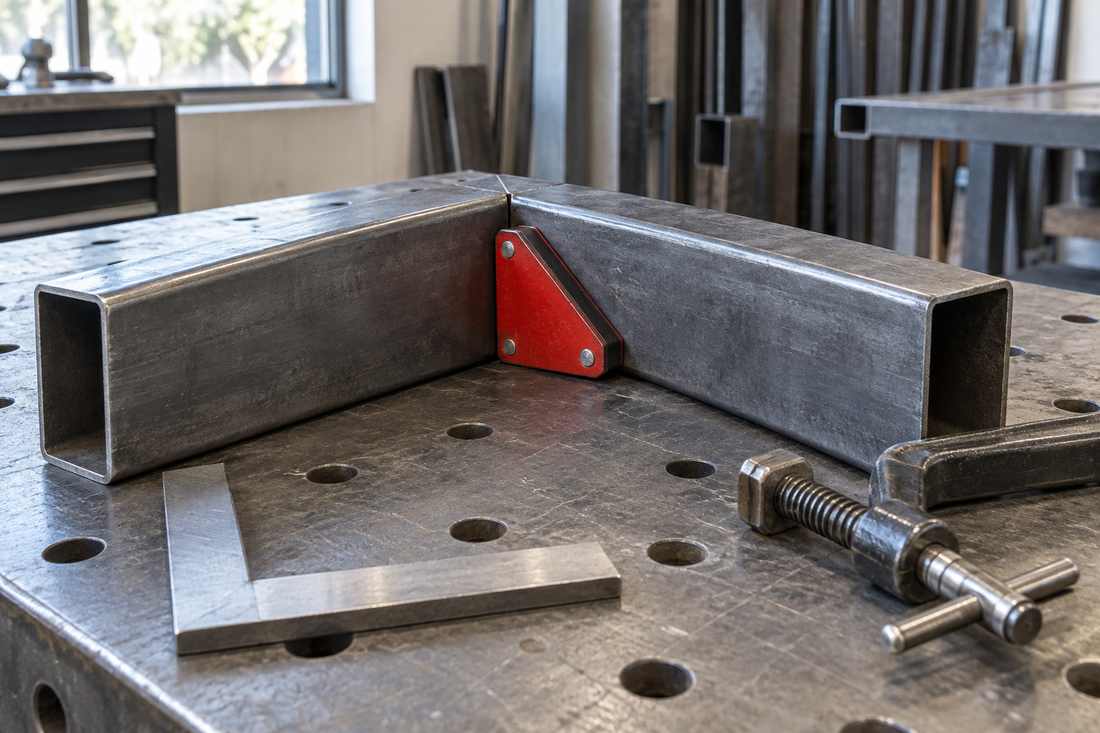

Red welding magnet holding square steel tubing at a right-angle corner on a workbench, with a square and clamp nearby.

A frame can look square on the bench and still move out of alignment as the first tacks cool. Welding magnets help hold steel parts during fit-up, but they do not replace a square, a tape measure, or solid support. For a small MIG-welded bracket, tubing frame, or shop fixture, a few checks before welding can save considerable rework.

Start with clean, flat contact surfaces

Remove loose debris and spatter from the magnet faces and the areas where they meet the steel. Check cut ends for burrs that prevent the joint from seating. A chip trapped under one edge can tilt a member even when the magnet appears firmly attached.

Dry-fit the pieces on a flat, stable surface before striking an arc. Confirm the cut lengths, joint preparation, and required gap against your drawing or welding procedure. A magnet cannot correct an inaccurate cut by pulling the parts together.

Support the work, then position the magnet

Use stands, clamps, or a fixture to support long members and prevent tipping. Treat a welding magnet as a positioning aid, not lifting equipment or the sole support for an assembly. It needs magnetically responsive material; it will not hold aluminum.

An on/off model makes placement easier because you can align the parts before engaging its full holding force. Keep enough room around the joint for your torch and for removing the magnet after tack-up. Follow the instructions for the specific model you are using.

Measure independently before the first tack

Check the corner with a separate square rather than relying only on the magnet's shape. For a rectangular frame, check the side lengths, corner angles, and both diagonals. Matching diagonals are a useful cross-check, not a substitute for confirming the intended dimensions and geometry.

Also check that the assembly lies flat. A frame can measure correctly across the corners while one corner is lifted off the table. Settle those problems before adding tacks, when adjustments are still straightforward.

Tack, recheck, and remove the magnet

Use tack sizes and locations appropriate to the material, joint, and applicable welding procedure. Recheck alignment as the tacks cool instead of completing the entire assembly from one initial measurement. If a corner pulls, correct the fit-up before continuing rather than expecting the finishing weld to straighten it.

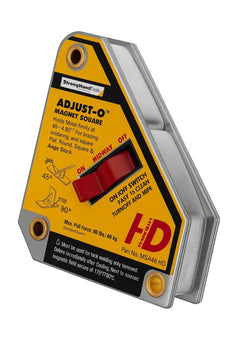

Strong Hand Tools specifies its Adjust-O magnet squares for tack welding only and says to remove them before completing the weld. Once the tacks securely hold the parts, remove the magnet and use suitable mechanical restraint where needed. Keep magnets away from prolonged welding heat. See the manufacturer's Adjust-O usage guidance for the model-specific limitations.

Two on/off magnet options at ArcWeld

Choose by fit, access, and the manufacturer's specifications, not pull-force numbers alone. Maximum magnetic pull is not a safe lifting-load rating, and actual holding depends on contact and material conditions. Check the product pages for current availability.

Your pre-weld check

  • Clean contact faces and fully seated joints.
  • Stable support with no unsupported overhang.
  • Dimensions, corner angles, and flatness checked independently.
  • Alignment rechecked after tacking, with magnets removed before finishing.

Need help identifying a tool or replacement item for your setup? Send the details through ArcWeld's parts lookup request. A careful fit-up makes the next step at the welding bench more predictable.
