When an arc becomes difficult to start or inconsistent, it is tempting to change the machine settings immediately. Before you do, check the work-clamp connection. This small part of a MIG, TIG, stick, or flux-cored setup deserves the same attention as the gun, torch, and consumables.
Before inspecting or servicing equipment: turn the power source off, disconnect input power or stop the engine, and follow the machine manual and applicable lockout procedures. Allow hot parts to cool. Never handle or adjust an energized work connection; repairs belong with qualified personnel.
Understand the work lead's job
The work lead connects the welding power source's work terminal to the workpiece. Although product listings often call the attachment a ground clamp, it is not a replacement for the equipment's safety grounding. Poor weld-circuit connections can add resistance and contribute to arc-starting problems or arc wander. Miller's equipment safety and maintenance guidance explains this distinction and the need for proper connections.
Start with a clean contact point
Look at the metal under the clamp, not just the area you plan to weld. Paint, rust, and other contamination can interrupt good metal-to-metal contact. Clean the intended attachment area using a method appropriate for the base material and any coating hazards. Even a process that tolerates some surface contamination still needs a sound electrical connection. Miller's flux-cored welding guide specifically calls out cleaning the clamp location.

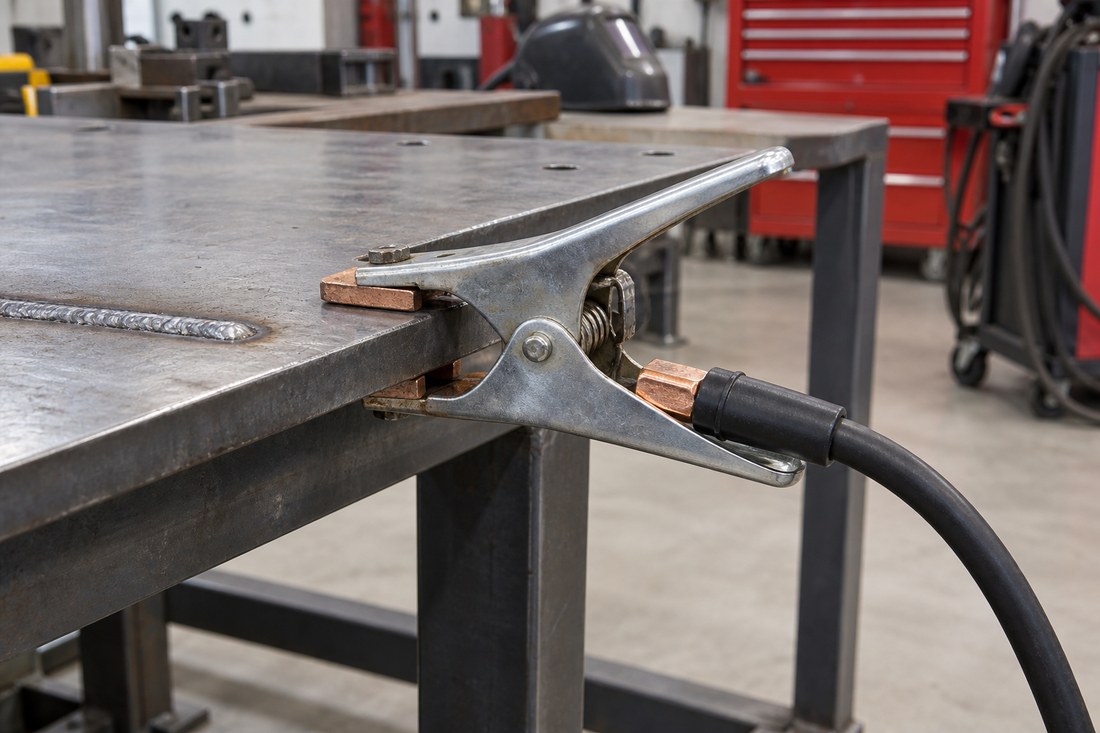

Attach the clamp securely to a clean spot on the workpiece close to the weld area, as directed in Miller's torch setup instructions. Check your own equipment manual for your setup. Do not use chains, lifting equipment, or wire ropes as the welding-current path.
Inspect more than the jaws
- Contact surfaces: check that the jaws can seat firmly on the intended surface.
- Grip and hardware: look for damage or loose parts that prevent a dependable attachment.
- Cable attachment: inspect the connection at the clamp, following the manufacturer's fastening instructions.
- Lead condition: look along the cable for cracks, worn insulation, fraying, or other damage.
Cleaning one contact point will not correct a loose cable termination or damaged lead. Remove damaged equipment from use and arrange proper repair or replacement. Miller's maintenance checklist includes checking the work-clamp lead, inspecting cables, and cleaning and tightening weld terminals.
Choose a replacement that fits the whole setup
Compare the required current and duty-cycle rating, jaw opening, cable capacity, and cable-attachment method before ordering. A higher-rated clamp alone does not increase your machine's output or make an undersized cable suitable.
These ArcWeld options provide different starting points for that comparison:
- Miller 257796 200 Amp Work Clamp: a steel work-clamp option listed for 200 amps.
- Lenco EG-300 300 Amp Welding Ground Clamp: steel construction with copper-alloy jaws.
- Weldmark 500 Amp Ground Clamp: a flat ground-clamp option from Weldmark by Lenco.
Do not choose by the amperage number alone. Confirm the manufacturer's complete specifications and the requirements of your lead assembly.
Check the result before changing another variable
After the equipment is safely returned to service, check performance on a suitable test piece using your established procedure and required welding protection. If the problem remains, follow the machine's troubleshooting guide. The clamp is one possible cause, not an explanation for every unstable arc.
Need help identifying a replacement? Have your machine model, cable size, existing clamp part number, and intended welding current ready. Use ArcWeld's Parts Look UP or call 812-738-4344 to discuss the fit before ordering.
