Pressure and flow are different measurements
Pressure is commonly expressed in pounds per square inch; gas flow is commonly expressed in cubic feet per hour or liters per minute. A regulator reduces and controls pressure. A flowmeter indicates a flow rate under its specified operating conditions. A combined flowmeter regulator performs both functions. Do not read a cylinder-pressure gauge as the amount of gas flowing at the torch.

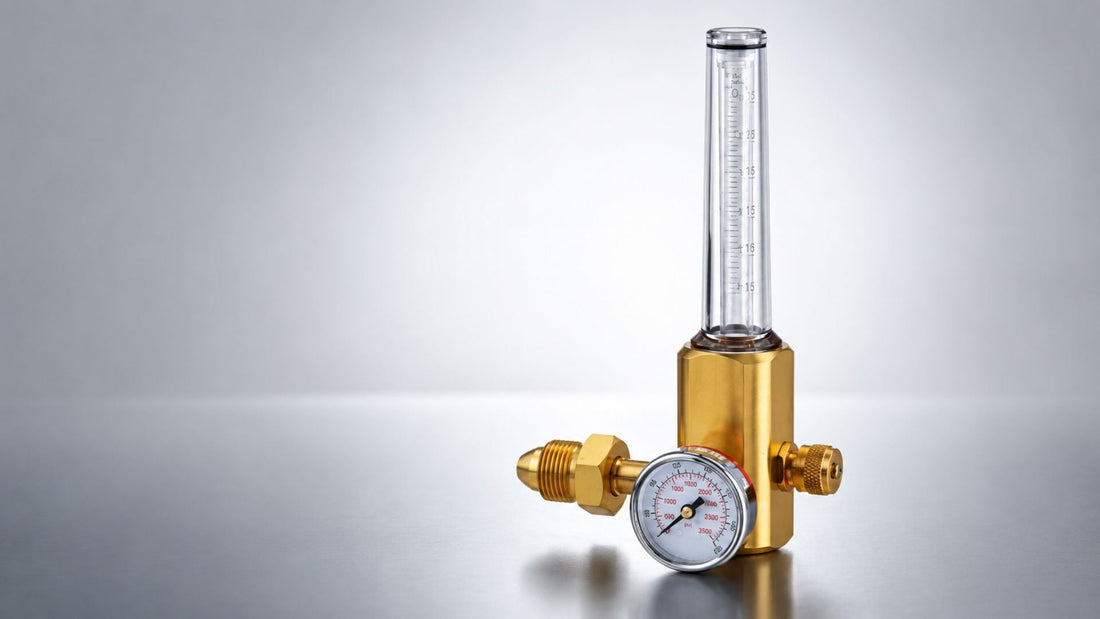

Some welding flow-gauge regulators indicate flow on a gauge rather than a vertical tube. Follow the instructions for that particular design. The controls on an adjustable-pressure regulator and a fixed-pressure flowmeter regulator do not necessarily work the same way.
Read a model-specific specification
For example, Miller lists the Smith H2051B-580 with a CGA-580 inlet, a preset outlet pressure of 50 psig, and a maximum inlet pressure of 3,000 psi. Its flow tube has different gas scales and a separate flow-adjustment valve. These are specifications for that model, not universal values for every argon regulator.
The ArcWeld H2051B-580 listing is one option to compare after confirming the required connection, gas service, and pressure limits. A CO2 scale on a flowmeter is not proof that its inlet fits the valve on a particular CO2 cylinder. Verify the complete connection; do not force fittings or improvise an adapter.
Match the gas and read the correct scale
Use the shielding gas specified for the wire, process, and welding procedure. Pure argon and argon/CO2 mixtures are not interchangeable simply because the same regulator family can serve them. An argon/CO2 mixture is not a pure inert gas.
Read the correct scale with the meter in the orientation and operating condition required by its instructions. For a tube-style meter, follow the specified float-reading method. Set and check flow using the machine's approved gas-test or purge function where provided, rather than assuming a static reading shows flow at the torch. Do not operate the trigger in a way that creates an unintended wire-feed or arc hazard.
There is no single flow setting suitable for every MIG nozzle, TIG cup, gas mixture, joint, or shop condition. Use the equipment and consumable guidance as the starting point. A larger flow setting is not a substitute for finding a leak, correcting a damaged hose, or protecting the weld from drafts.
Use the manufacturer's startup and shutdown sequence
Secure the cylinder, protect the regulator from damage, and inspect the equipment before use. Follow the exact manufacturer's procedure for connecting, opening valves, setting flow, testing connections, and shutting down. Do not apply a generic instruction to crack a cylinder valve or back out a pressure-adjusting screw to every flowmeter design.
Use an approved leak-detection method appropriate for the gas and equipment, never a flame. Stop using damaged or leaking components and have faults corrected by qualified personnel. Follow the applicable precautions in OSHA's general compressed-gas requirements and the manufacturer's instructions.
Give the parts counter a complete request
Provide the cylinder gas and valve connection, required inlet-pressure rating, machine and process, hose connection, and whether you need a regulator alone or a complete flowmeter-and-hose arrangement. Confirm what the package includes. Accurate connection and operating information prevents a wrong-part order more effectively than asking for a universal argon regulator.
