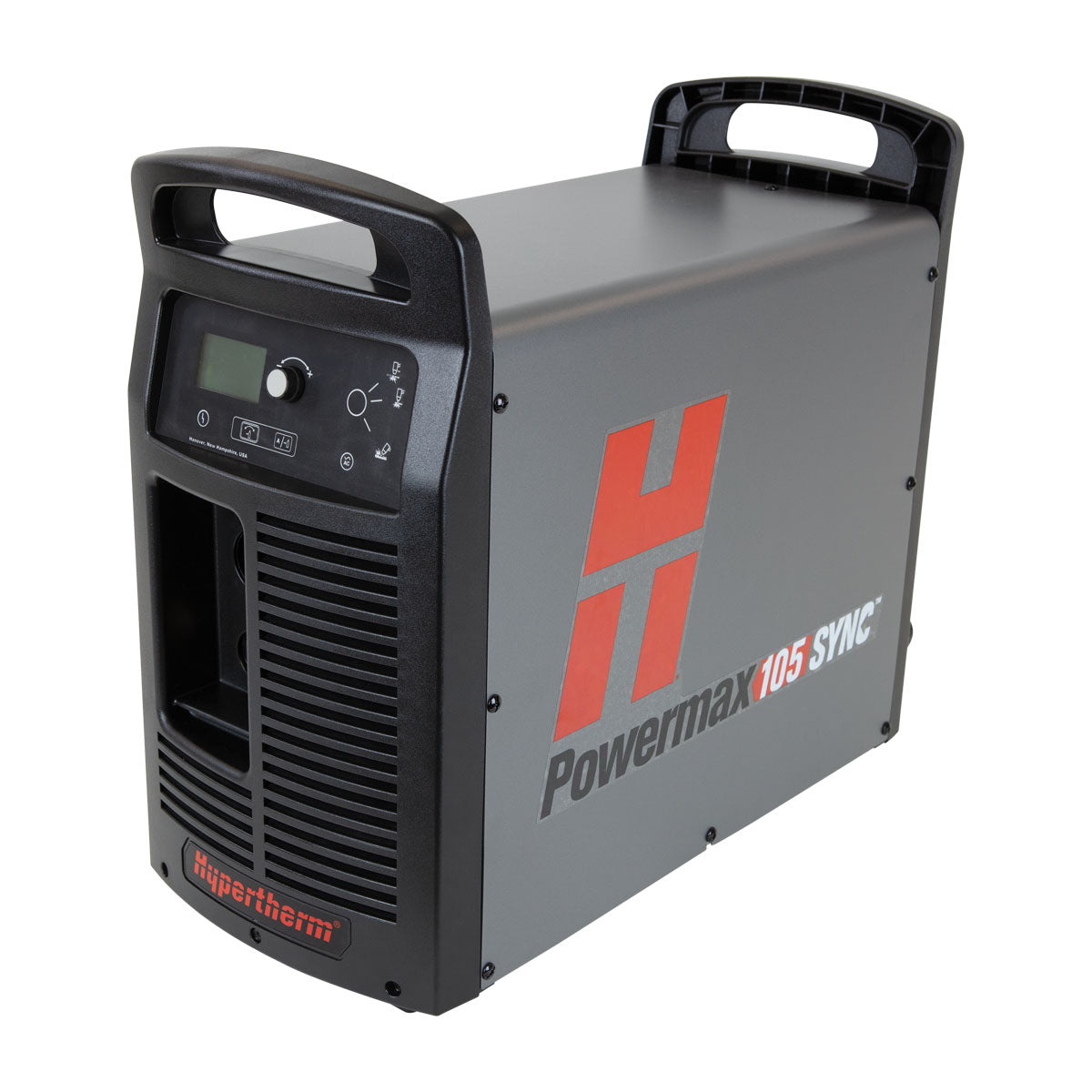

Hypertherm Powermax105 SYNC Plasma Power Supply Industrial Three-Phase Power Source | 200–600V 3-Phase | CSA Certified The Powermax105 SYNC power supply delivers maximum cutting performance for high-demand fabrication and industrial applications. Built for three-phase power environments, this system provides the amperage and duty cycle needed for heavy plate cutting and continuous production schedules. System Overview: Power Supply Only: Does not include torch or consumables (sold separately) Input Power: 200–600V, three-phase required Certification: CSA approved for North American industrial installations Technology: SYNC intelligent arc control with automatic parameter adjustment Key Specifications: Output Current Range: 25–105 amps Recommended Cut Capacity: 25 mm (1") mild steel Severance Capacity: Up to 38 mm (1-1/2") Duty Cycle: 100% at 105A (40°C) Process: Air plasma cutting Weight: Approximately 27 kg (60 lbs) SYNC Technology Advantages: One-Knob Simplicity – SYNC automatically sets gas pressure and adjusts parameters based on consumable selection. No manual charts, no pressure gauges to monitor. Consistent Arc Performance – Intelligent feedback maintains optimal arc voltage throughout the cut, compensating for torch height variations and material inconsistencies. Extended Consumable Life – Automatic parameter optimization reduces premature consumable wear caused by incorrect settings. Designed for CNC Integration: The Powermax105 SYNC integrates seamlessly with automated cutting systems via optional CPC (Cutting Process Control) port. Pair with machine torches (sold separately) for: Automated cutting tables Robotic plasma systems High-production fabrication lines Multi-Voltage Flexibility: Accepts 200–600V three-phase input, eliminating the need for step-down transformers in facilities with 480V or 575V service. Auto-sensing voltage simplifies installation and reduces setup time. Ideal Applications: Heavy structural steel fabrication Shipbuilding and repair Equipment manufacturing Metal service centers Industrial maintenance shops cutting plate up to 1-1/2" Build Quality & Reliability: Wind Tunnel Cooling Design – Advanced airflow management keeps internal components cool during extended cutting sessions, protecting sensitive electronics and extending service life. Thermal Overload Protection – Automatic shutdown prevents damage during overload conditions; visual indicators alert operators before shutdown occurs. Proven Hypertherm Engineering – Built to the same industrial standards as plasma systems used in the world's most demanding fabrication environments. Compliance & Safety: CSA certified to ANSI Z49.1 and CSA W117.2 welding safety standards Meets NFPA 70 (NEC) electrical code requirements for three-phase installations IP23 ingress protection rating for industrial shop environments What's Included: Powermax105 SYNC power supply Power input cable Work clamp and cable Owner's manual and quick-start guide Required Accessories (Sold Separately): Torch: Choose hand torch or machine torch based on application Consumables: Duramax Lock series (application-specific) CPC Cable: Required for CNC integration
